3100×65 mm plate roll

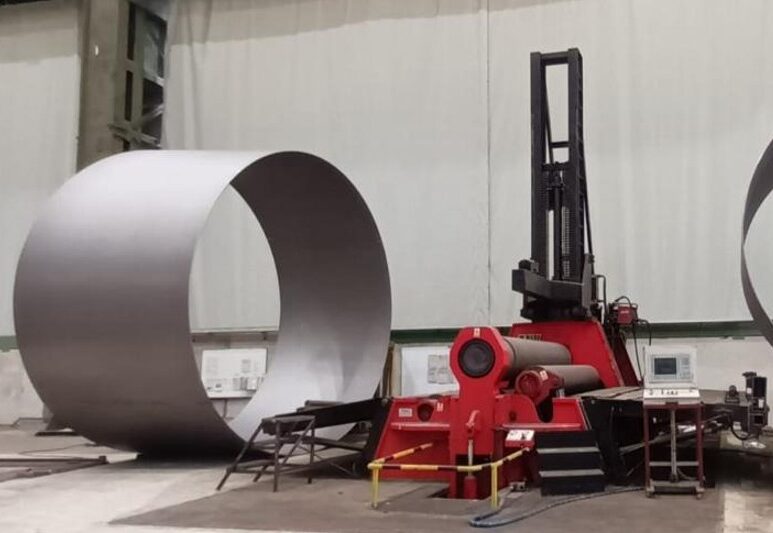

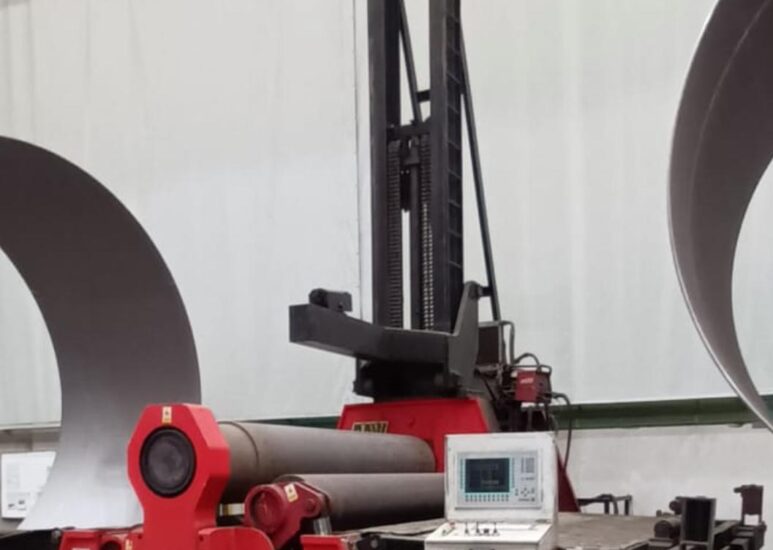

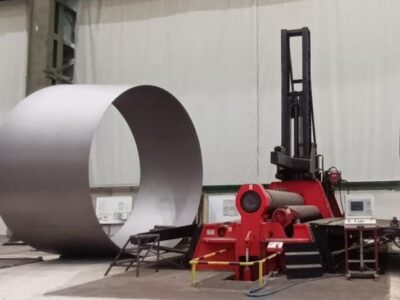

DAVI_MCB 3060 WT  4-roll plate bending machine CNC _ 3000x65MM     – Year of make 2007

Capacity plate width 3100 mm

Plate thickness 65 mm /  Prebend 50 mm  /  plate yield 355 MPa

TOP ROLL 600 MM /  LOWER ROLL 550 MM

Configuration installed:

• Surface hardening of the four rolls
• Dual pre-pinch, with adjustable force upon the input of plate thickness
• Conical bending hydraulic attachment – hardened contrast pad.
• Power driven rolls rotation top/bottom gearbox axial direct drive hydraulic each roll.
• Calibration system for re-rolling of welded shells   rounding.
• Console electric independent with centralized commands  joysticks and CNC screen readout.
• CNC controller DAVI GENIUS semiautomatic and fully automatic programmable.

with digital readout of the 4rollers  for use in manual operation,

• Opening front side hydraulic drop-end to unload closed shells.
• Variable working speed step-less axis interpolation.
• Safety installation with emergency stop.
• Instruction manuals for operation and service

Voltage electric 3phase Vac 380/50   power Kw 75

nr.1  top  support hydraulic operated ,  shell ID max 5 mtrs  – CNC programmable

nr.1  side  support hydraulic on the left

nr.1  side support  hydraulic on the right,

finger pusher  to swing the sheet plate forming cones rolling.

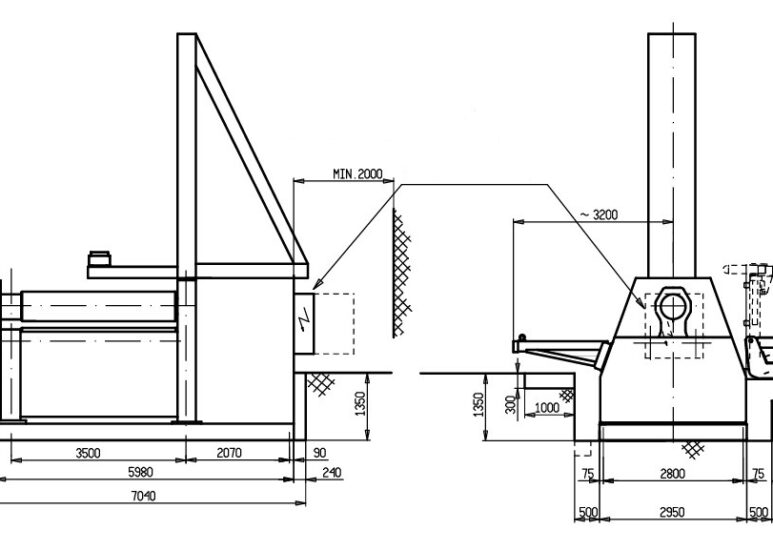

layout 6350 x 2950 x H 3250 mm  x weight 68 ton
