3000×50 mm 4roll

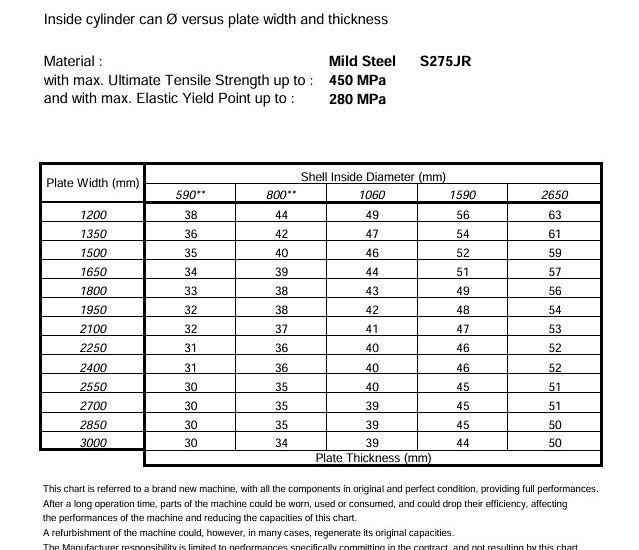

plate bending roll capacity 3000×50 mm Davi modelMCB3053

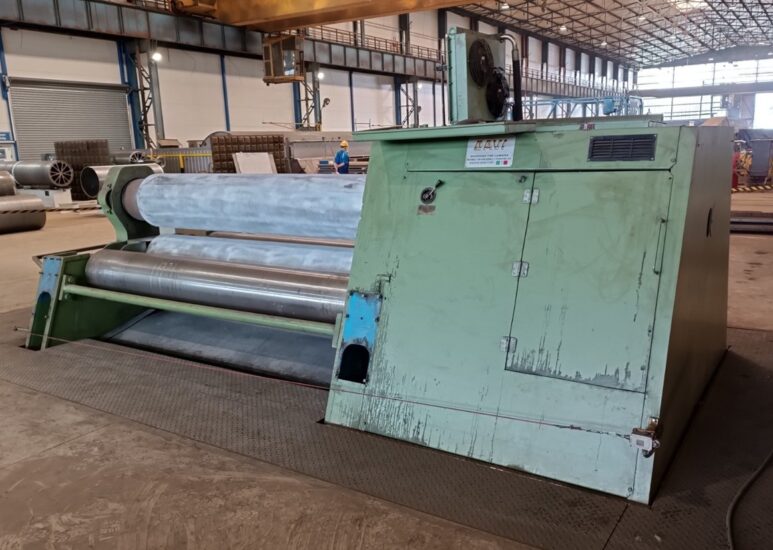

Hydraulic 4 roll plate bending machine,  year 1998

plate width  3000 mm

thickness rolling 50 mm

pre-bending 40 mm

width on the rolls  3100 mm

upper roll size  530 mm

lower roll 470 mm

side rolls 400 mm

Power  electric 70Hp  on hydraulic unit  voltage 380/50

Installed configuration

Hardened surface of the 4 rolls

conical bending attachment – hardened cone bending

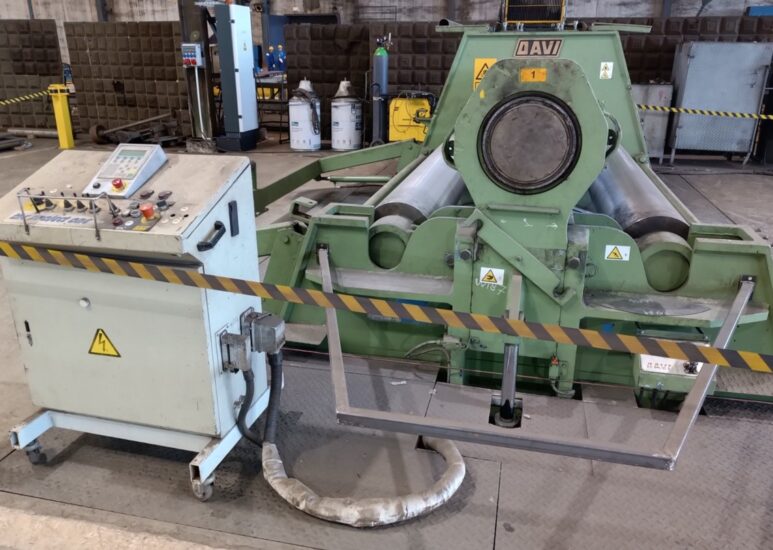

Console electric   with digital position  readout of the rolls

Controller Siemens Simatic OP7

NC programmer for automatic rolling

Hydraulic power driven the central rolls with axial gearbox

Pre-pinch pressure adjustable  plate edge  pre-bend.

Drop-end open  front for unloading closed shells

Rerolling system for calibration roundness of welded shells.

Safety and emergency  system installed.

Manuals original for operation and  maintenance

Dimension  6000×2900 x h 2900 mm   weight 40000 kg
