3000×35 mm - Bending Roll

3000X35mm 4roll_digital

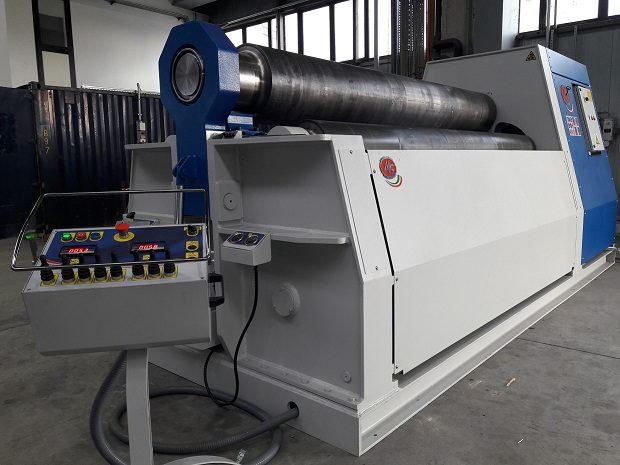

4 Roll Dual Initial Pinch / 3000×35 mm

4 roll hydraulic plate bending machine plate width 3000 mm – bending plate thickness 35 mm **pre-bending plate thickness 28 mm – top roll size 430 mm – electric power 25Hp to run the centralized hydraulic power unit – weight 19 ton

Installed configuration: -the 4 roll rolls hardened – conical plate bending attachment – CNC 4 AXIS programmable automatic roll bending. – Electric control joysticks manual roll bending – CNC automatic roll bending with memory up to 300 programs.

Hydraulic driven top & bottom rolls – Rolls parallelism torsion bar.
Pre-pinch pressure adjustable for best pre-bending . – Top roll front side opening unloading.

Re-rolling welded shells calibration system best roundness tolerance.

Safety and emergency stop barrier installed with the machine – Certificate CE

You may be also interested in

2000×6 mm CNC

4 Roll Dual Initial Pinch

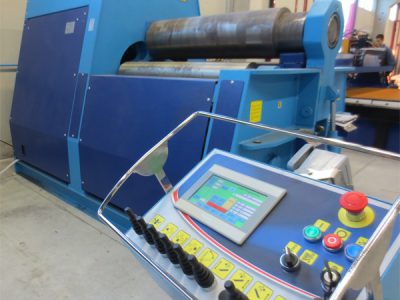

1750x40mm CNC
