1750x40mm CNC

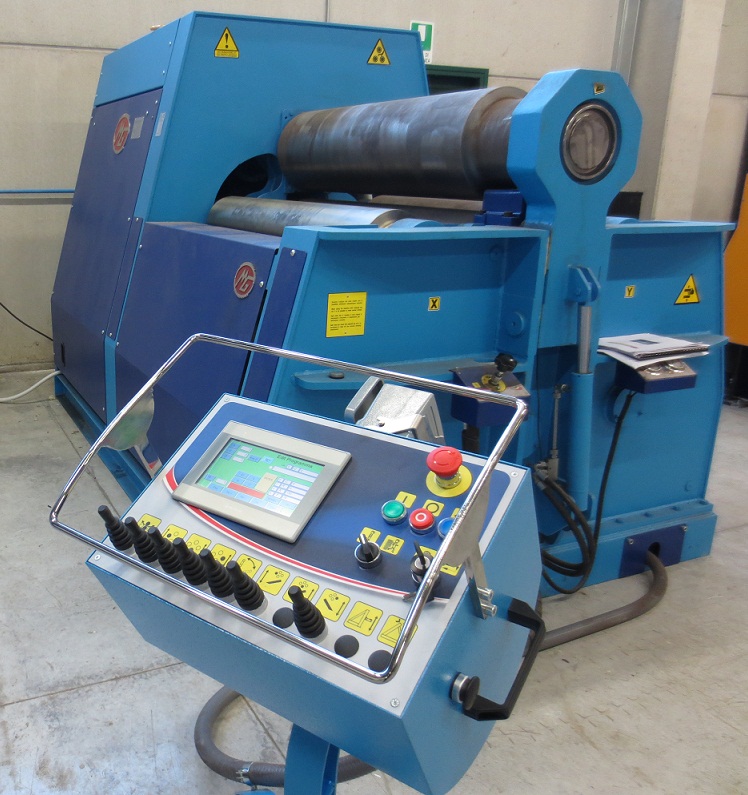

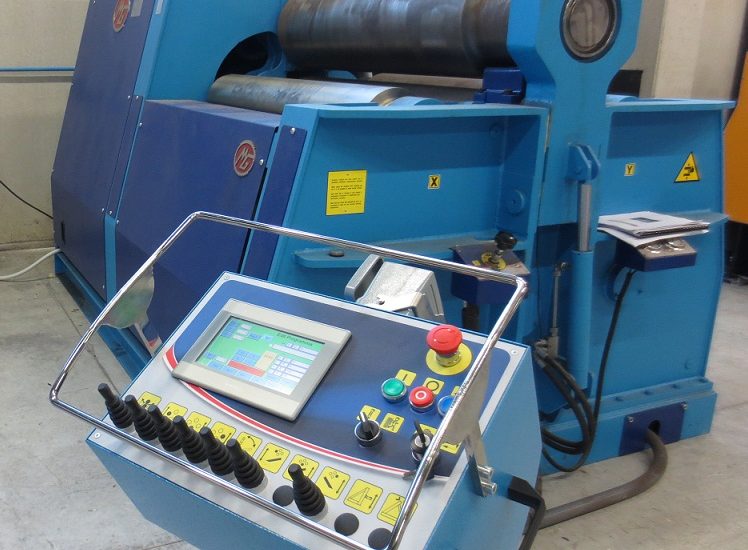

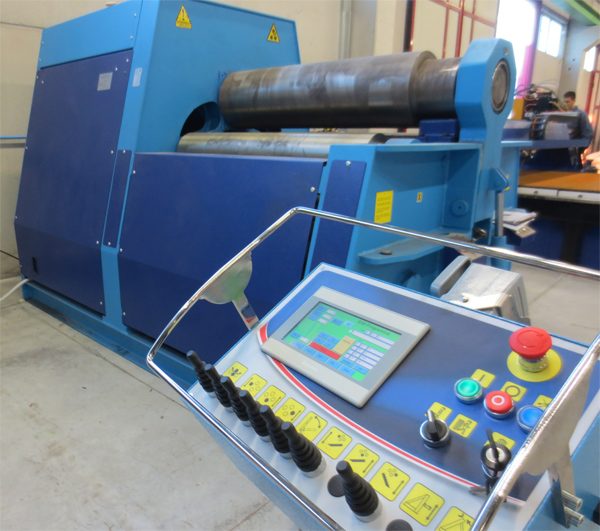

Hydraulic 4 roll plate bending machine  CNC 1750 x 40 mm

plate width 1750 mm – bending plate thickness 40 mm  ** pre-bending plate thickness 35 mm

top roll size 370 mm – electric power 25Hp  – weight 12 ton

Installed configuration:  -hardened  rolls surface  – conical plate bending attachment  – Control console electric  with CNC-4axis

Directional electric joysticks for manual use of the machine.  -CNC Memory storage up to 300 automatic bending programs.

all the four rolls are programmable for automatic plate bending,

pre-pinch pressure  programmable to optimize the plate edge set  pre-bend .

7” touchscreen  readout  manual use.  Teach-in  steps input programmable plate roll.

Rolls surface hardened, Pinch pressure bottom roll adjustable to achieve best pre-bending,

Hydraulic driven top & bottom rolls direct coupling  overload protected,  Parallelism lifetime  lasting via torsion bar,

Front opening drop-end hydraulic to unload closed shells,

Reduced maintenance requirement with sealed bearings and self lubricated bushings,

Plate roll bending – conical plate bending – rerolling welded shells to calibrate thight roundness tolerance,
