Bending machine and plate roll Italy brand manufacturing
3 Roll Pyramid Pinch / 3000×16 mm Digital
3roll 3000×16 mm with pre-pinch planetary
Bending capacity:
Plate width: 3000 mm
Plate thickness max 16 mm
Thickness rolling 14 mm
25 mm thickness opening between the rolls
Technical data:
3100 mm max plate width on the rolls
300 mm Top roll
260 mm Lower rolls
400/50 Vac voltage – rewirable 480/60
10 Hp electric installed on the hydraulic power unit
Configuration complete with the machine
Hardened surface of the 3 rolls.
Conical plate bending hydraulic attachment with hardened contrast pad.
All the 3 rolls driven with axial gearbox and motor each roll independent
Calibration system for the re-rolling of welded shells rounding flat spots.
Console electric on wheels with centralized commands joysticks and digital readout.
Opening front side hydraulic drop-end to unload closed shells.
Variable speed working slow/fast.
Emergency systems all installed in compliance with mc tools safety regulation.
Machine predisposed to take installation of extra tooling all circuitry onboard ready to connect.
1x top support ID max 3mtrs 1.8Ton 1 x side arm 2Ton support dual articulation for large ID
You may be also interested in

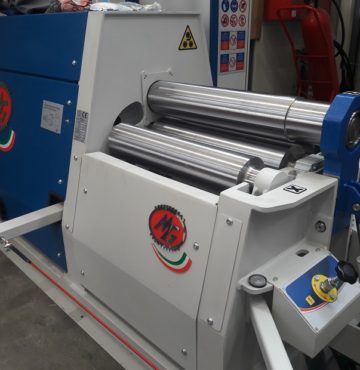

4 Roll Dual Initial Pinch
