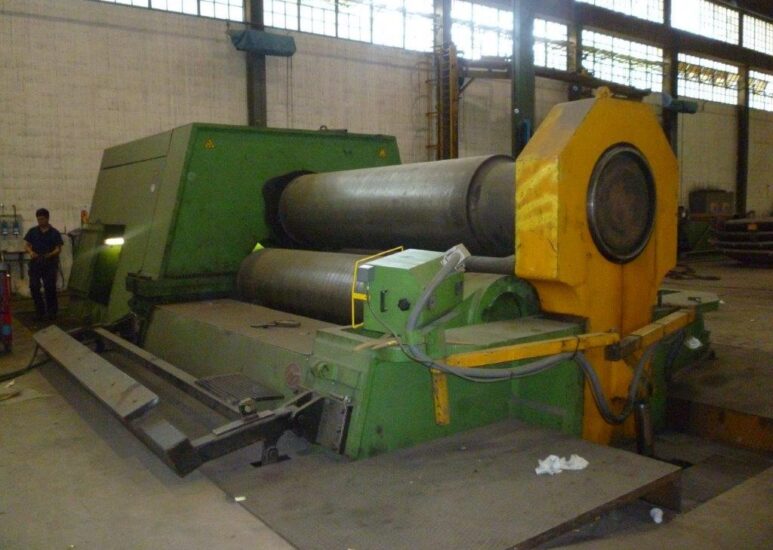

3500×140 mm 3 roll

Hydraulic Plate Bending machine  planetary pinch pyramid  with prebend.

model MG35140V  3 roll capacity 3500×140 mm

TECHNICAL DATA

The machine was overhauled  in 2024,

Capacity :

Plate width  mm. 3500

Rolling thickness mm. 140

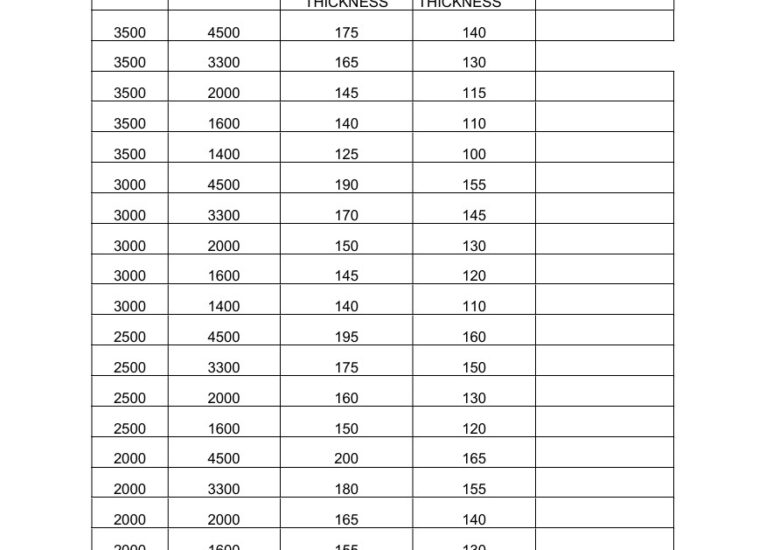

Capacity chart in enclosed

-3 rolls driven hydraulic motorized with axial gear unit on each roll independent

-Synchronized hydraulic rotation of the 3 rolls  with variable speed.

-Planetary design with pre-pinch fully hydraulic

-Conical plate bending  with hardened contrast  pad

-Digital position readouts of the bending rolls

-Rolls  installed on bearings double crown heavy duty

-Overload safety hydraulic  operation protection of the 3 rolls

-High pressure hydraulic power pack  with multi-pumps oil feed

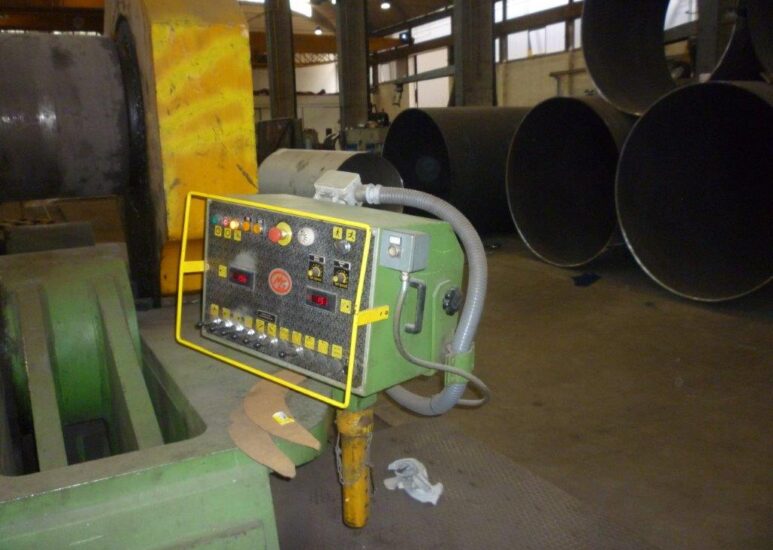

-Centralized control panel electric on wheels with joysticks and digital readouts

-Emergency stop with  safety system  around  the  machine working area

Rolls surface length mm. 3550

Top roll mm. 950

Side rolls mm. 880

Electric power on hydraulic unit  Hp 100 + Hp 100    Voltage 380 Vac / 50 Hz

Configuration & accessories installed with the machine

-Hardened surface of the 3 rolls

-Conical plate bending attachment , rolls tilt with contrast roller type.

-Centralized operator panel  with directional joysticks electric.

-Digital position readout of the bending rolls.

-Emergency and safety installations, certified CE

-User manuals and instruction books
