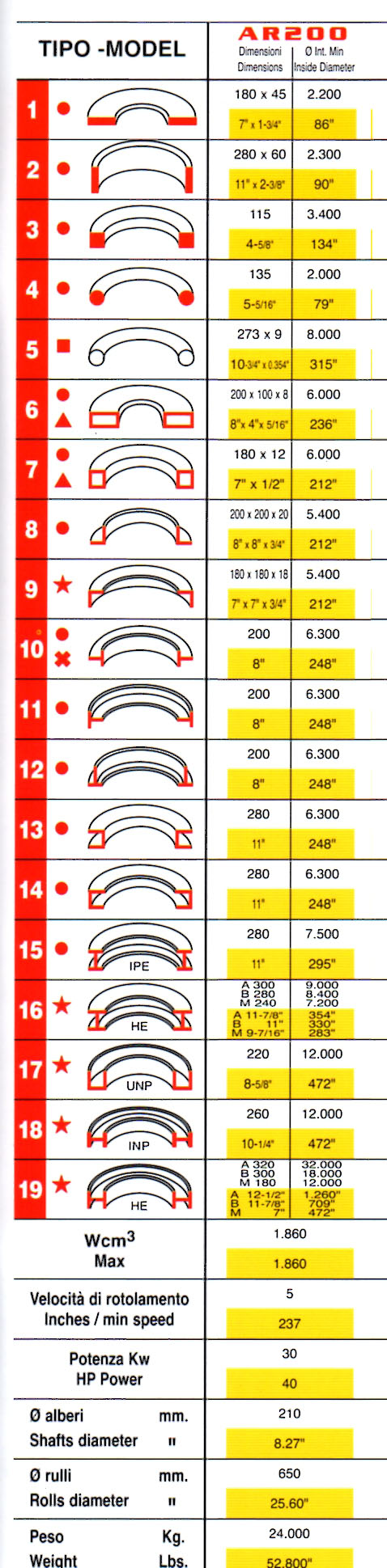

AR200 Y08 CHART

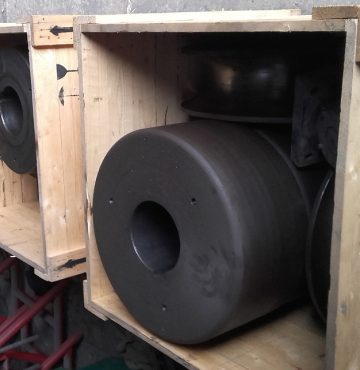

SET OF ROLLS IN BOXES

Profile Bending Roll / SHAFT 200mm MG

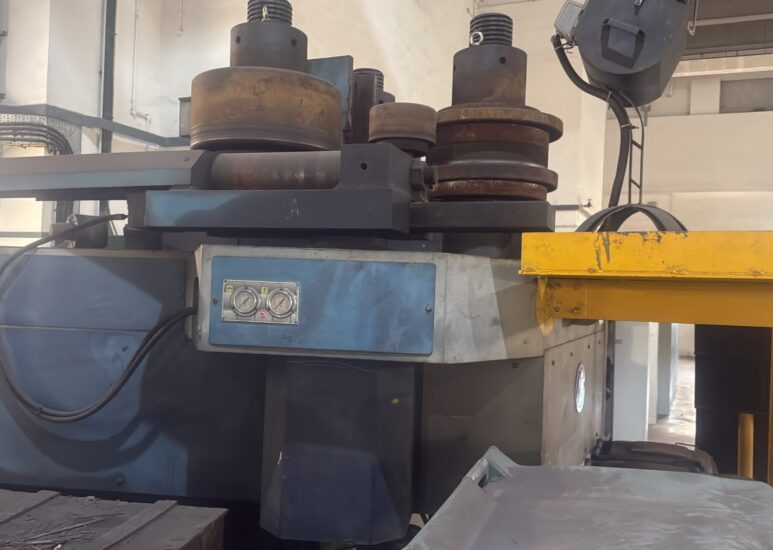

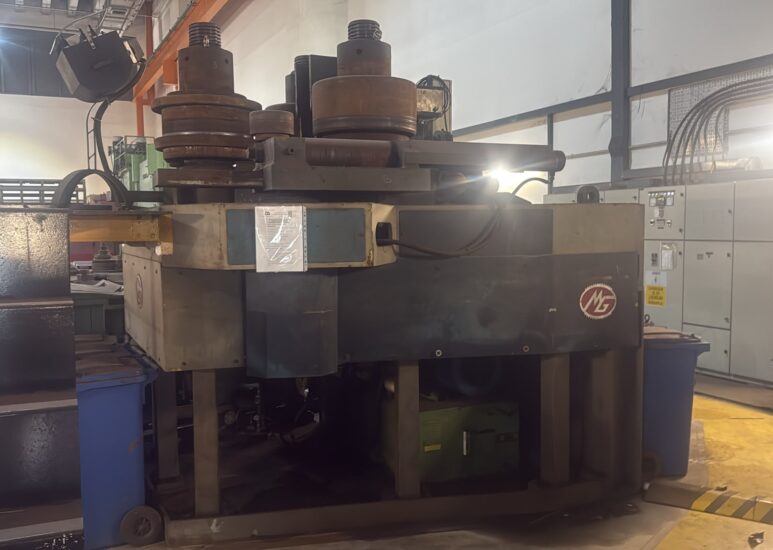

Profile bending roll used equipment hydraulic model AR200 year 2008 make MG Italy

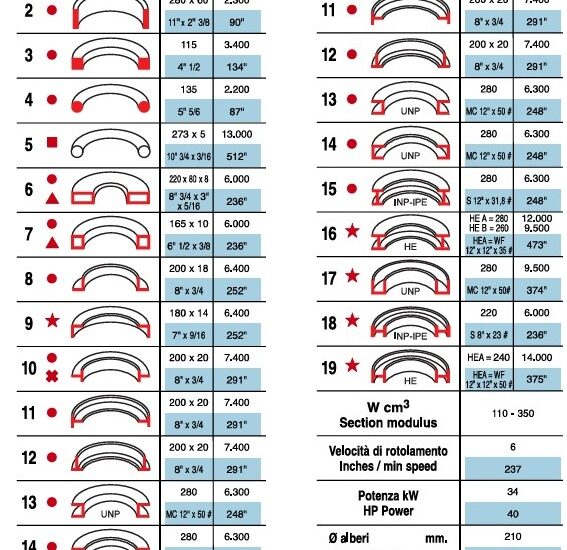

Capacity bending chart photo in enclosed –Technical data: Output shafts size 200 mm

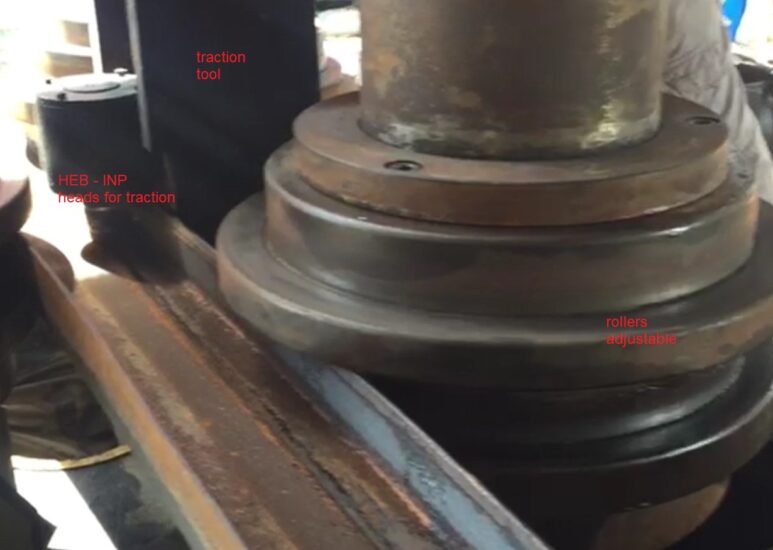

-Machine complete with set of rollers adjustable for the various shape of profiles. -Traction tool hydraulic operated for the HEB-beam – IPE – UNP bending the hard side. -Lateral correctors left and right side hydraulic operated in 3 direction.

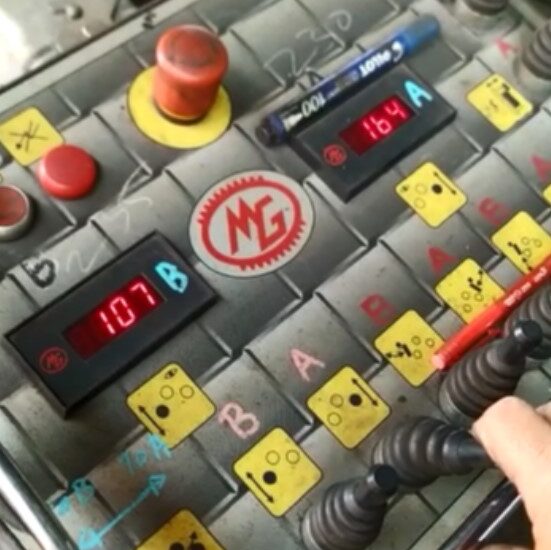

-Included additional set of rolls for pipe 6″ inches -Machine with 3 rolls driven system with individual hydraulic motor and axial gear-unit on each shaft. -The 3 shafts working on bearings, heavy duty type with sealed lubrication. -Centralized control panel movable on wheels with all electric commands. -Dual rolling speed up to 5 mtr/min with automatic balancing system between the 3 rolls. -Safety devices in compliance with European regulation. CE mark. -electric 30 Kw on the hydraulic power unit- dual voltage 380/50 – 440/60 -Digital position readout on the bending rolls -Manuals and schematics all available along with the machine. -Machine delivered in working condition ready for use, cleaned and greased

SHIPPING ON 20”FR WEIGHT 27TON – 3 PACKAGES = NR.1 MACHINE + NR. 2 BOXES OF ROLLS
