Hydraulic Model AR360 construction MG year 2011

PROFILE BENDING MACHINE – H-BEAM BENDING TOOLING

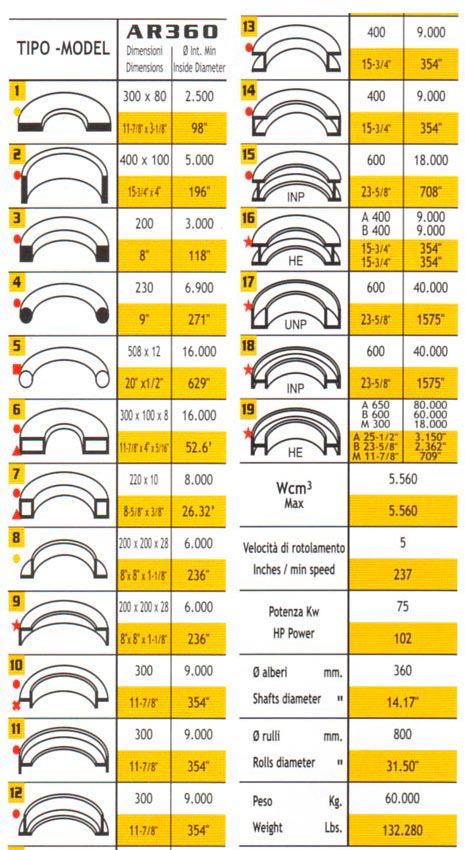

Capacity data and bending chart in enclosed –

The machine is offered fully controlled cleaned and prepared in perfect working condition, ready operative to work.


We supply the machine in excellent condition both in terms of internal technical hydraulic mechanic electric, and outer finishing.

Photos enclosed showing the machine as it is now before the renovation.

Configuration with the machine

– Complete set of rolls with adjustable height to seat and bend the profiles as per the capacity chart in enclosed

– Traction tool, complete unit for H-beam and I-beam pre-tensioning HEB – IPE – UPN bending on the hard side

– Set of heads for the HEB interchangeable on the traction tool for HEB240 – HEB280- HEB320 -HEB360, other can be added upon request

-Lateral correctors left/right side hydraulic operated in 3 directions.

-Control panel console movable on wheels with electric joysticks and digital position readout.

-hydraulic unit self enclosed into the machine with electric motor 100 Hp

-electric power supply Vac 380/50 Hz

-weight of the machine approx 56 Ton.

Technical manufacturing data

-profile bending roll with pyramid dual pre-pinch technology

-the 3 rolls are hydraulic driven with gear unit individual on each roll,

-slippage control with automatic hydraulic synchronization between the 3 rotating shafts.

-rolling speed variable slow/fast

-overload hydraulic protection of all the hydraulic operated function with the machine

-emergency shut-down devices in compliance with safety regulation

-Service manuals and operation books along with the machine

-CE certification, made in Italy MG manufacturing


RESUME OF THE SUPPLY

Machine model AR360 year of make 2011, fully controlled, cleaned and prepared in perfect working condition.

Set of rollers as above detailed

Lateral correctors left/right side hydraulic operated .

Control panel console with electric joysticks with digital position readout.

Traction tool, complete unit for HEB IPE UPN bending on the hard side with digital position readout .
