Section roll 90 mm

OFFER TECHNICAL AND COMMERCIAL

PROFILE BENDING ROLL SHAFTS OUTPUT 90 MM – PIPE BENDING ROLL

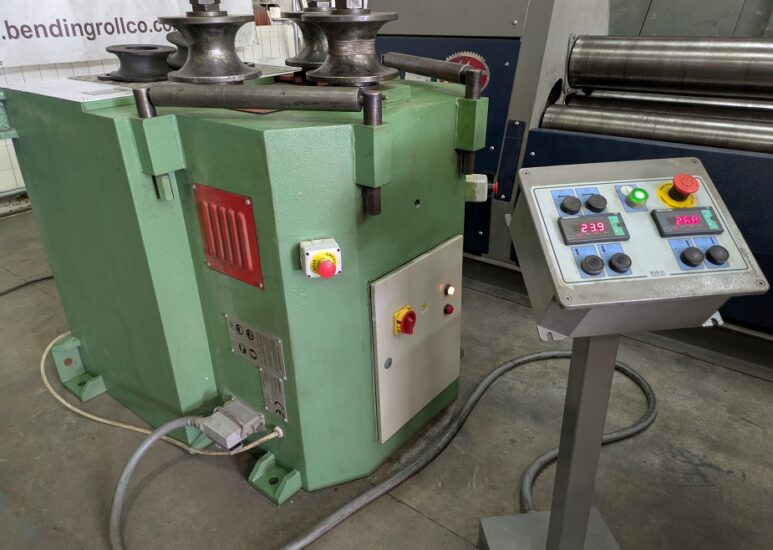

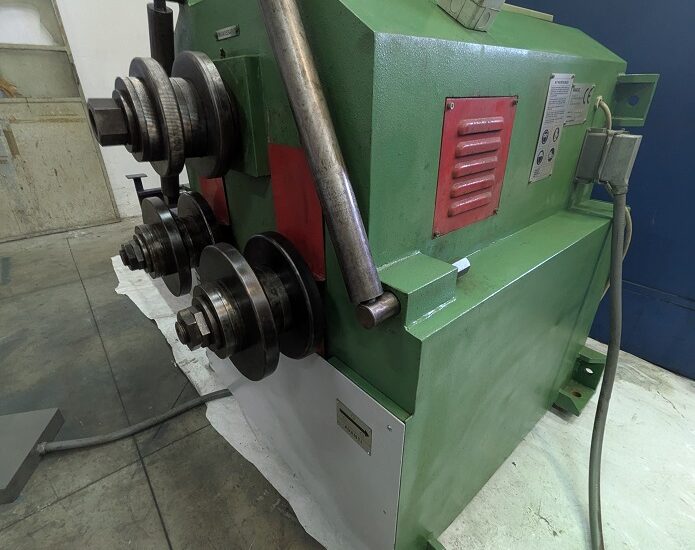

MARGI CA90H2 YEAR 2007

SHAFTS SIZE 90 MM

SET OF UNIVERSAL ROLLERS SIZE 260 MM

LATERAL CORRECTOR ROLLERS LEFT/RIGHT SIDE SCREW ADJUST

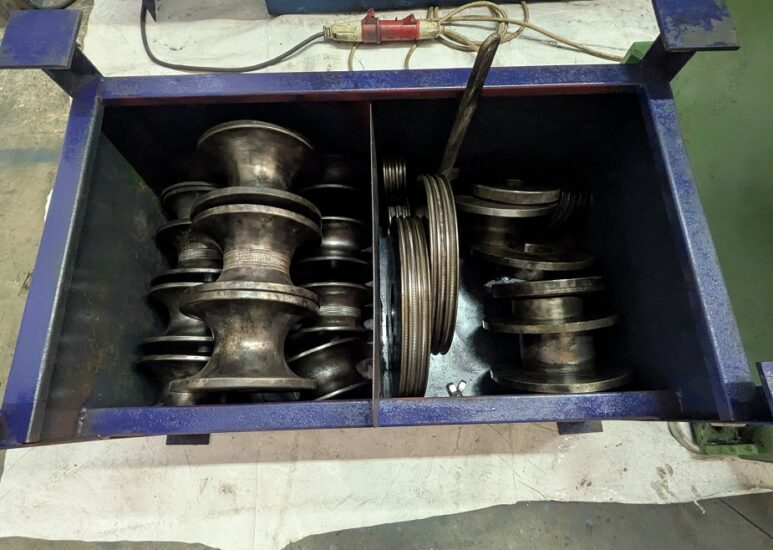

4 SET OF ROLLERS FOR TUBE BENDING MM 61 – 78 – 90 – 116 –

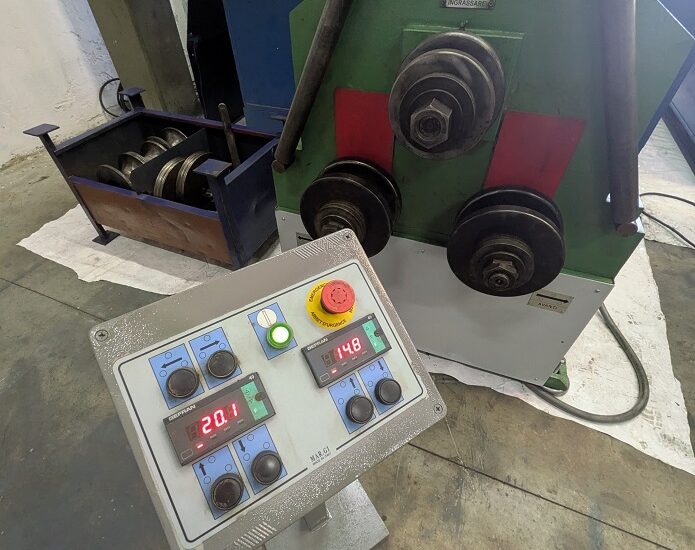

CONSOLE ELECTRIC MOVABLE ON WHEELS ALL THE COMMANDS CENTRALIZED

DIGITAL POSITION READOUT OF BENDING ROLLS

UPPER ROLL DRIVEN MOTORIZED ELECTRIC POWERED WITH GEAR UNIT

SIDE ROLLERS HYDRAULIC ADJUSTMENT POWERED INDEPENDENT WITH PISTONS

MACHINE REVERSIBLE CAN WORK WITH SHAFTS VERTICAL AND HORIZONTAL

SAFETY AND EMERGENCY STOP INSTALLED WITH THE MACHINE

MANUALS AND SCHEMATICS DOCUMENTS IN ORIGINAL

DIMENSION 1260 X 1000 X H1260 MM -WEIGHT 1000KG

Commercial offer:

-Price Euro 18.000,00#

-Delivery term : ex-works

-Delivery time: available ready, on prior sale.

-Inspection: under power in our deposit in Italy.

-Payment: wire transfer

End-quote
