Profile bending roll

Profiles & tubes bending machine Tauring Alfa 70H2 year 2003

-Hydraulic section bending machine with digital readout

-dual pre-pinch pyramid roll configuration

3 rolls powered driven –

Shafts output 70 mm –

Size of universal rollers 245 mm

Lateral correctors left/right side hydraulic motorized operated

Machine reversible can work with shafts vertical/horizontal

Tooling:

-Set of universal rolls and spacers

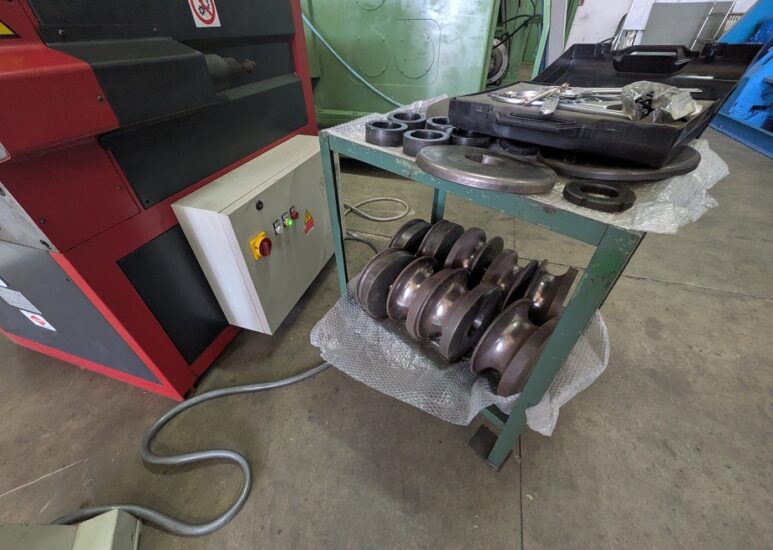

Pipe bending rolls set for tube size 22,5 – 61 – 76 – ( see photos of the rolls in enclosed )

Power total installed 5,5Kw Vac 380/50

Dimension 1640 x 1220 x H1580 mm

Weight 1300 kgs
