limpet coil

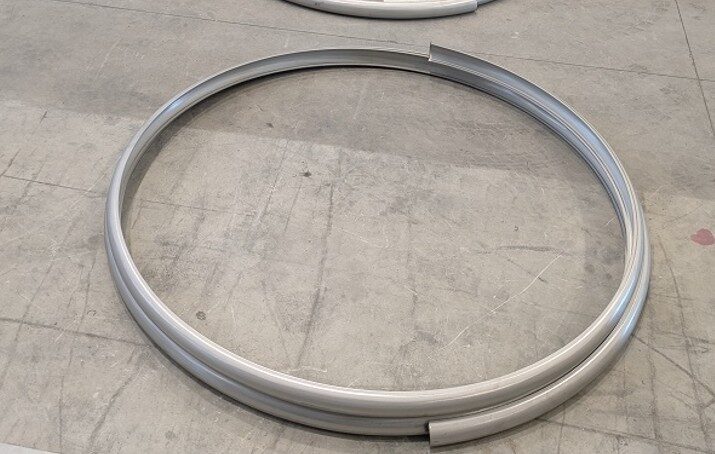

Limpet Coil forming and rolling machine  half-pipe round forming from flat plate and spirally rolled into wanted diameter  suitable to be welded on the outside of a process vessel, tank, or reactor to form a jacket for heating or cooling.

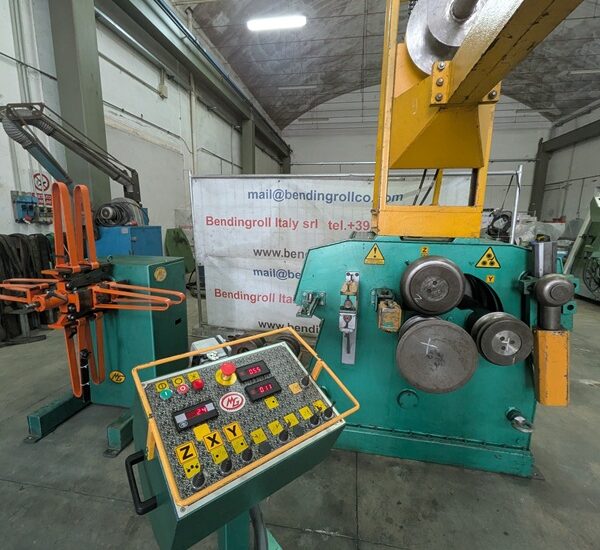

Technical specs and configuration of the machine:

-Shafts  output size 80 mm

-Interchangeable set of rollers on the shafts for the different size of half-pipe forming

-Coil holder for the reel metal strip  with guide-way   bench uncoiling and alignment  the  steel strip to the rolling machine

-Pinching lower central roll adjustable to form the half pipe

-Side roll  with digital position readout to determine the  bending diameter of the coil

-hydraulic  arm  in  3 directions  to set the pitch of the coil roll

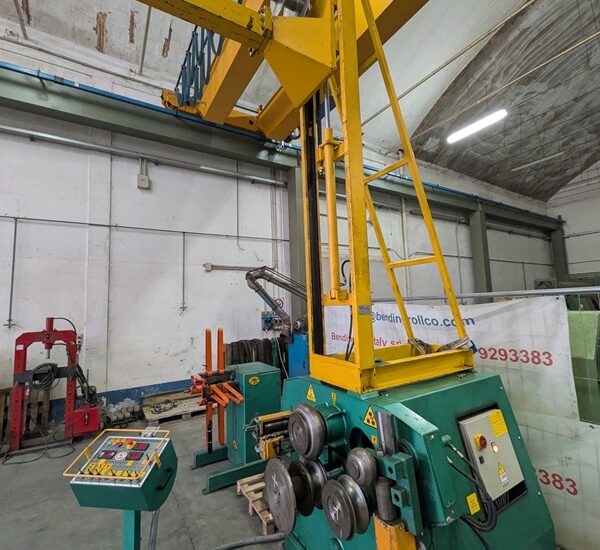

-Upper vertical support hydraulic operated to hold in position the formed diameter and collect the coils

-Control panel electric with push buttons  with digital position readouts  for the coil length,  the   bending radius and the forming load.

-Service manuals  and operation  books along with the machine.
