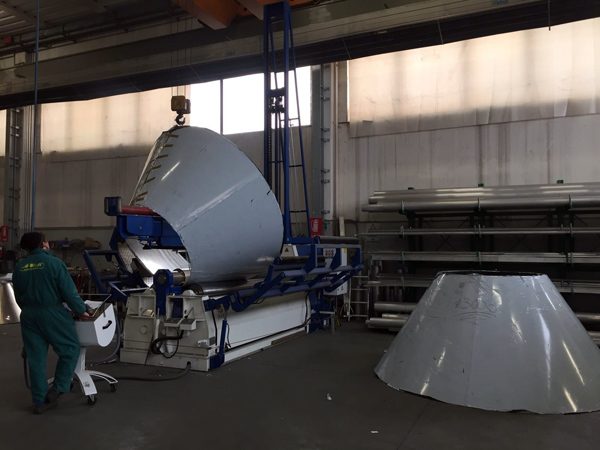

Conical Plate Roll - Bending Roll

4RC1506

4RC2508

4 Roll Dual Initial Pinch / Conical Plate Roll

Rollers motion on Linear_guideway or Planetary _swing_arc. All the rolls tiltable to engage the angle of the cone. Top hydraulic support tiltable on the angle of the cone to keep from collapsing the formed shell. Lateral arms for plate infeed supporting very large conical formed diameters. Single pass fast rolling programmable save-and-repeat on NC controller. Deflection compensation of the rolls with adjustable pre-pinch pressure. Calibration equipment on board the machine for the re-rolling of welded shell.

4 Roll Dual Initial Pinch
plate roll latest technology, customizable configuration upon the different requirement of production: -Variable Geometry -Planetary Driven -Linear Guideways -Combination Pinch Pyramid -Double initial pre pinch

Section Bending Roll
Profiles bending machine, Angle bending roll, 3 and 4 roll configuration dua

3 Roll Heavy Duty
Heavy Roll Bending Machines 3 roll configuration variable geometry

Accessories Manipulators
supports and manipulators hydraulic operated with control manual and

Straightening Machines
Plate sheets straightening , Section bars and profiles straightenin

Cone roll
4 Roll Dual Initial Pinch

1000×22 mm CNC
4 Roll Dual Initial Pinch

3000×22 mm 4roll CNC
4 Roll Dual Initial Pinch

3000×16 mm Digital
3 Roll Pyramid Pinch

Limpet coil pipe
tube forming in half radius with rolling into spiral for applica

Prebend flange bar
stainless steel full bar on edge section pre-bend leading and tra

Stainless cone roll
thick 2 mm small dia. 80 mm SS plate film coated

Coil tube rolling
boiler heater pipe coil roll serpentine

MOS SLOVENIJA

IMTEX INDIA

EUROBLECH GERMANY

33.BI.MU FIERAMILANO

4 roll 500×20-30 mm cnc
4 Roll Dual Initial Pinch

2500×20 mm Faccin
3 Roll Pyramid Pinch

SHAFT 200mm MG
Profile Bending Roll

Shaft 180mm Sertom
Profile Bending Roll
