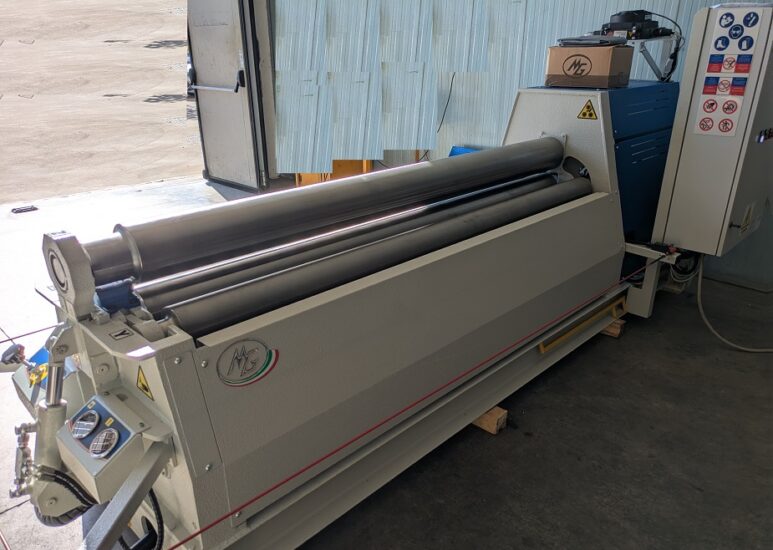

CNC 2000×6 mm EASYCOM

4 ROLL BRAND MG ITALY, HYDRAULIC MODEL M2006P _CNC EASY COMMAND -MATR.2025 MACHINE NEW

PLATE BENDING ROLL PLANETARY DESIGN DOUBLE PINCH PRE-BEND

CNC_PROGRAMMABLE AUTOMATIC PLATE ROLLING

Capacity:

-plae width 2000 mm

-Thickness rolling 6 mm

-Prebend 4 mm

Rolls dimensions:

-Surface useful 2050 mm

-Upper roll 160 mm

-Lower roll 140 mm

Configuration installed:

• Surface hardening of the four rolls, smooth finishing suitable for stainless plates rolling

• Dual pre-pinch, plate edges pre-bend automatic programmable

• Conical bending hydraulic attachment – hardened contrast pad.

• Power driven rolls rotation top/bottom gearbox axial direct drive hydraulic each roll.

• Calibration system for re-rolling of welded shells rounding.

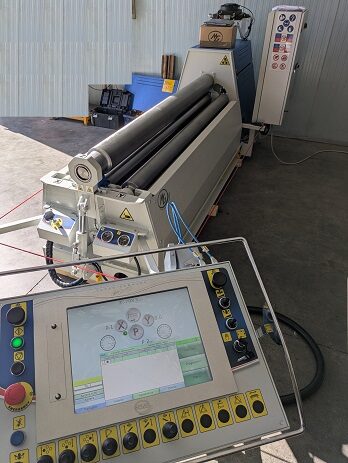

• Console electric independent with centralized commands joysticks and CNC screen readout.

• Opening front side hydraulic drop-end to unload closed shells.

• Variable working speed fast – slow .

• Safety installation with emergency stop.

• Instruction manuals for operation and service.

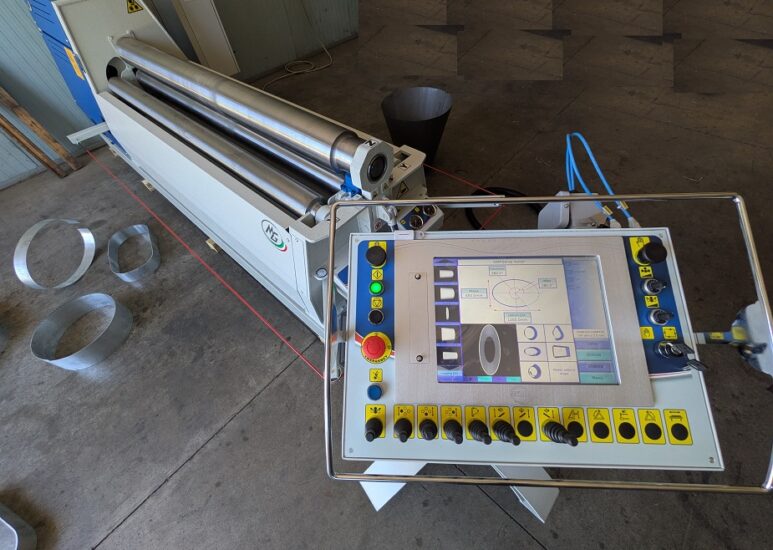

• CNC controller on touch screen 15” , 5 axis programmable teach-in, virtual infinite programs memory on hdd and USB

digital readout of the axis for manual, semiautomatic and fully automatic programmable.

Network local connect for remote monitoring.
