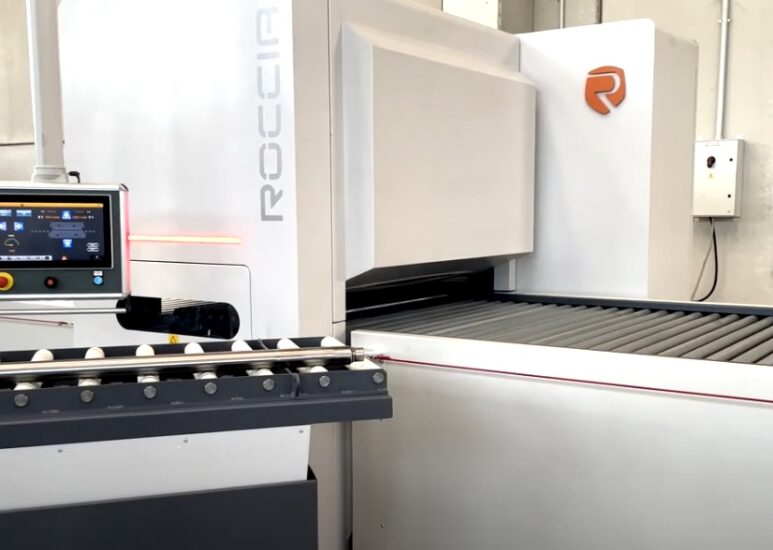

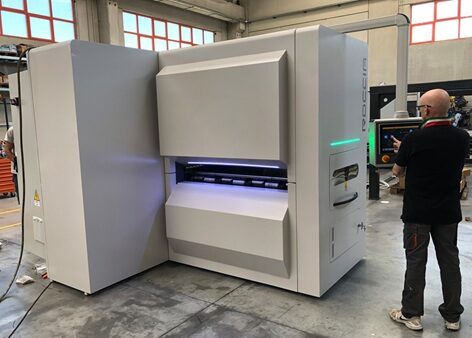

steel plate leveller 1300 x 0,8 to 6 mm

Flattening machine for plates

steel plate leveller 1300 x 0,8 to 6 mm
steel plate leveller 1300 x 0,8 to 6 mm
steel plate leveller 1300 x 0,8 to 6 mm
steel plate leveller 1300 x 0,8 to 6 mm
Flattening machine for plates
Flattening machine for plates
Flattening machine for plates
Flattening machine for plates

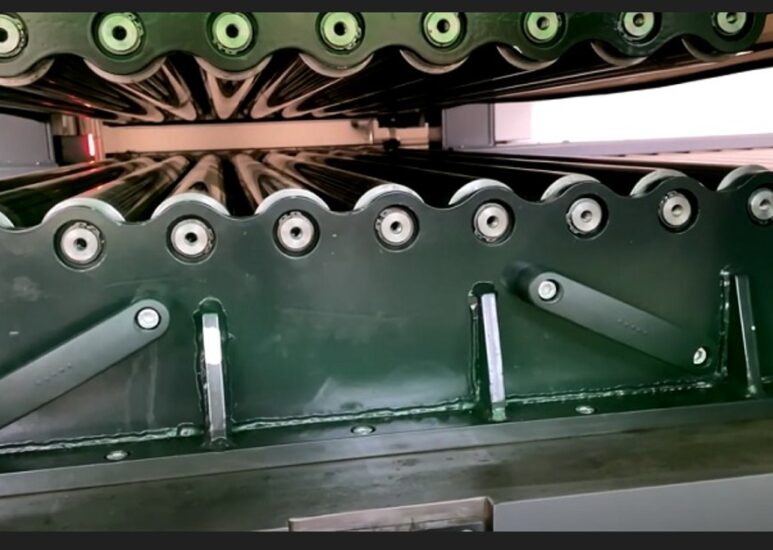

General description , features installed, machine configuration, straightening MC 1300 x 0,8to6 mm / Rollers steel quality 42NiCrM04 hardened 62 HRC  mirror-ground surface / Safety barrier around the machine / Infeed roller table 2 mtr. motorized forward&reverse / Unloading roller table 2 mtr. motorized forward&reverse / Gap detection and ranging into the straightening rollers / fast change system rollers  pack, with load unload table height adjustable motorized


/ Synchro speed between straightening rollers and infeed/outfeed table rollers / Plate sheet position detection and monitoring all along the straightening process / Heat exchanger  fluids cooler,   greasing system automatic

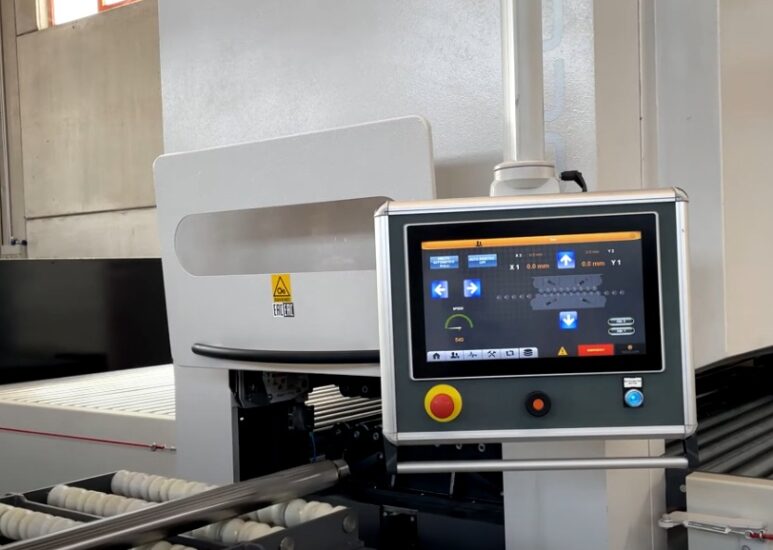

-Programmable CNC  straightening process for automatic sequence / Network connect remote monitoring and data exchange machine from-to cad station / Database of materials  quality for hardness control


-Techical data:  working height 1000 mm  / Total electric power installed  25Kw


—Capacity


Plate width  max 1300 mm  / plate thickness 0,8 to 6 mm  carbon steel / Plate thickness 0,8  to 4 mm stainless steel


  • General description , features installed, machine configuration, straightening MC 1300 x 0,8to6 mm / Rollers steel quality 42NiCrM04 hardened 62 HRC  mirror-ground surface / Safety barrier around the machine / Infeed roller table 2 mtr. motorized forward&reverse / Unloading roller table 2 mtr. motorized forward&reverse / Gap detection and ranging into the straightening rollers / fast change system rollers  pack, with load unload table height adjustable motorized

  • / Synchro speed between straightening rollers and infeed/outfeed table rollers / Plate sheet position detection and monitoring all along the straightening process / Heat exchanger  fluids cooler,   greasing system automatic

  • -Programmable CNC  straightening process for automatic sequence / Network connect remote monitoring and data exchange machine from-to cad station / Database of materials  quality for hardness control

  • -Techical data:  working height 1000 mm  / Total electric power installed  25Kw

  • —Capacity

  • Plate width  max 1300 mm  / plate thickness 0,8 to 6 mm  carbon steel / Plate thickness 0,8  to 4 mm stainless steel
