4roll 3000×40 mm

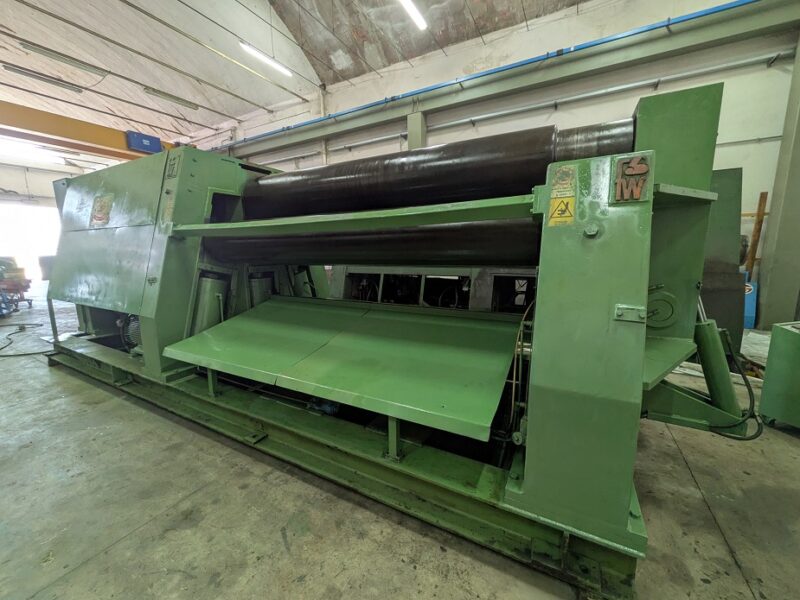

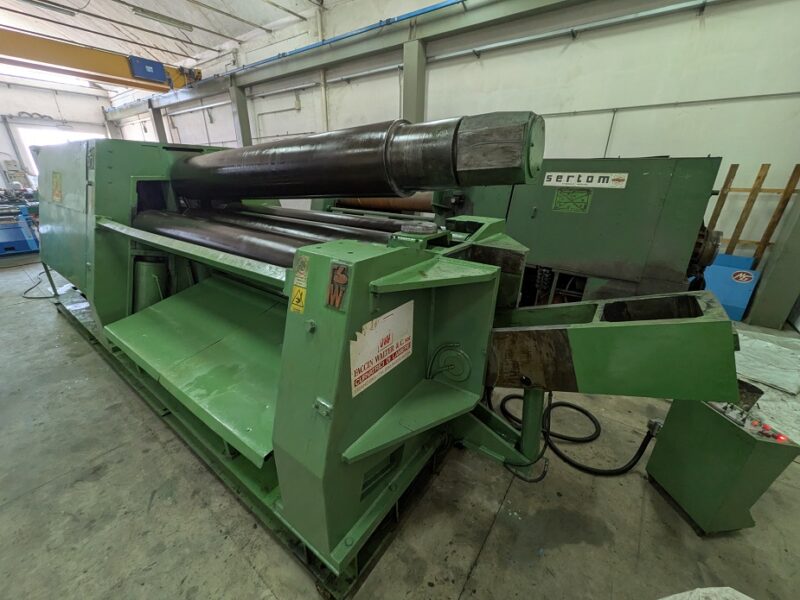

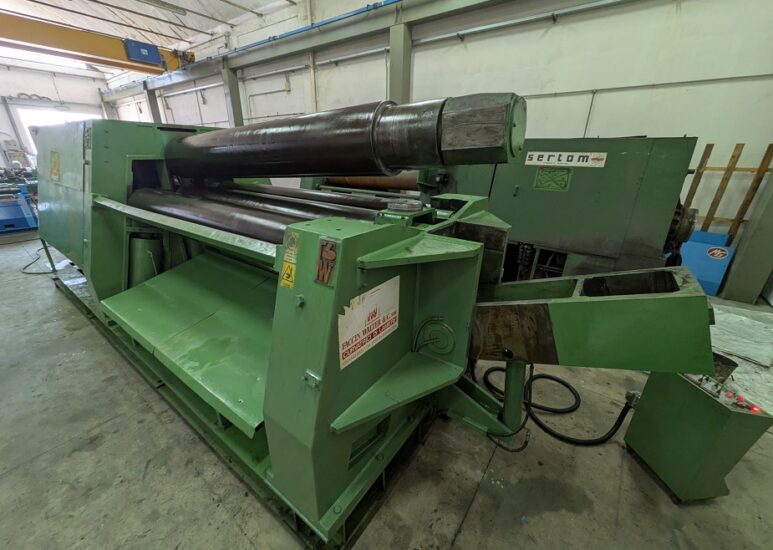

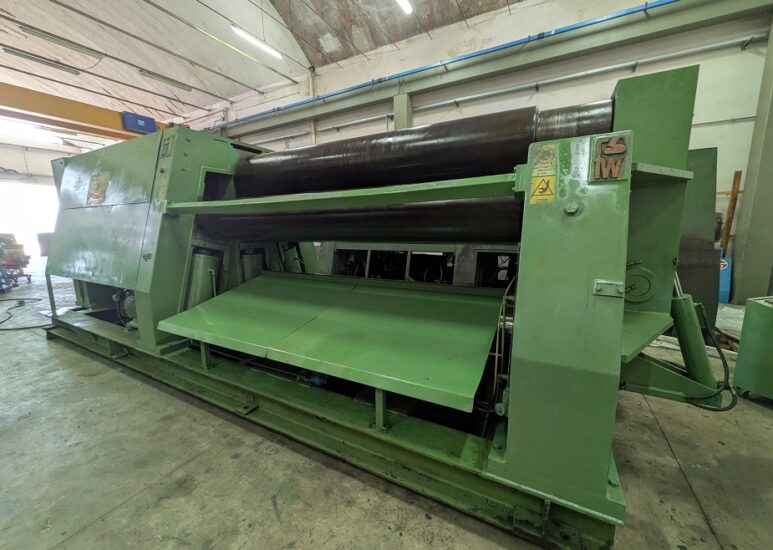

PLATE BENDING MACHINE FACCIN     – 4 ROLL HYDRAULIC 3000 X 40 MM

MODEL 4HCI3-35/30   YEAR 1990

PLATE BENDING ROLL  LINEAR GUIDEWAYS  DOUBLE PINCH PRE-BENDING

Bending capacity

-Plate width :                                  3000 mm

-Rolling plate thickness                 40 mm

– Prebend thickness                         35 mm

Rolls dimensions:        -Useful length    3050  mm

-central rolls upper/lower  470 mm

-side rolls left/right 420 mm

• Hardening  of the 4 rolls high strength surface
• 3 rolls driven  powered with gear unit with  hydraulic motor
• Conical bending attachment side rolls tiltable to form cones, contrast pad roller type.
• Opening  front  hydraulic drop-end to unload the closed shell.
• Variable speed  working roll bending  rotation hydraulic speed  fast/slow.

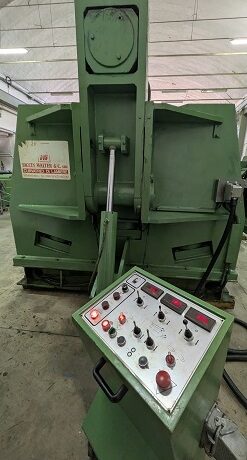

• Console electric on wheels with centralized commands  joysticks and 3 digital readout.
• Digital readouts of the rolls position bending and pre-bending repeatability.
• Hydraulic  tank capacity oil 350 liters – power electric 37 Kw  voltage 380 /50
• Dimension 7700 x2410 x H 2470 mm    – weight 43000kgs
