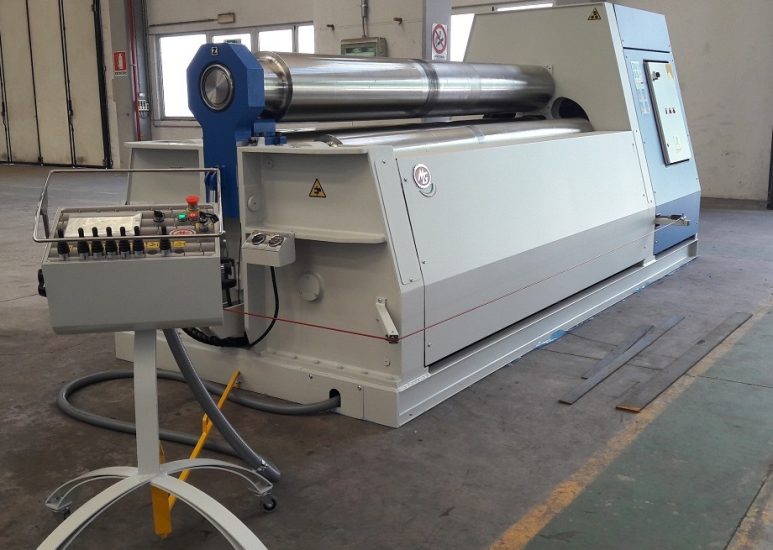

3000×22 mm 4roll CNC - Bending Roll

CNC_EVO 4.0

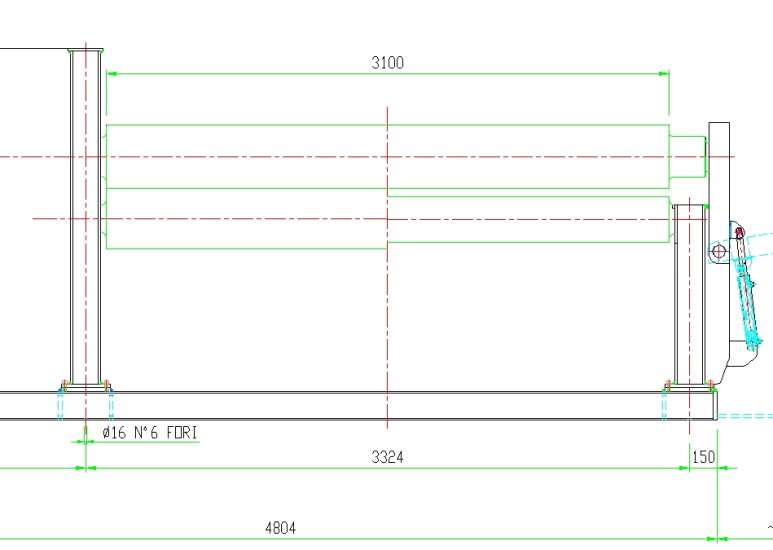

M3022 DRW SIDE

4 Roll Dual Initial Pinch / 3000×22 mm 4roll CNC

4 roll 3000X22 MM cnc evo autocal cadcam
CAPACITY
plate width 3000 mm
thickness 22 mm
prebend 18 mm
dual prepinching-prebend
technical data:
-length of rolls 3100 mm
-top roll dia. 350mm
-lower roll dia. 330mm
-20 Hp electric motor on hydraulic power unit.
-Electric supply Vac 400/50 – 480/60

-Hardened rolls
-Conical plates bending attachment.
rolls hydraulic power driven with gear unit axial independent
-Synchronized hydraulic power dragging .
-front open drop-end to remove closed shells.
-Calibration re-rolling feature for welded shells
Safety configuration in compliance with norms. -CE quality certification

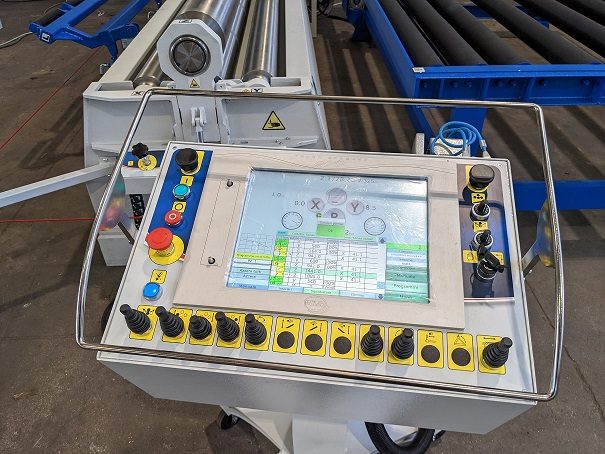

Control console movable – electric commands with touchscreen axis readout
CNC graphic autocalc EVO programmable upon input of cad drawings of the parts to be rolled.

additional feature on the machine = Predisposed to take installation of an hydraulic support arm, 2Ton capacity
