4roll 2050×22 mm

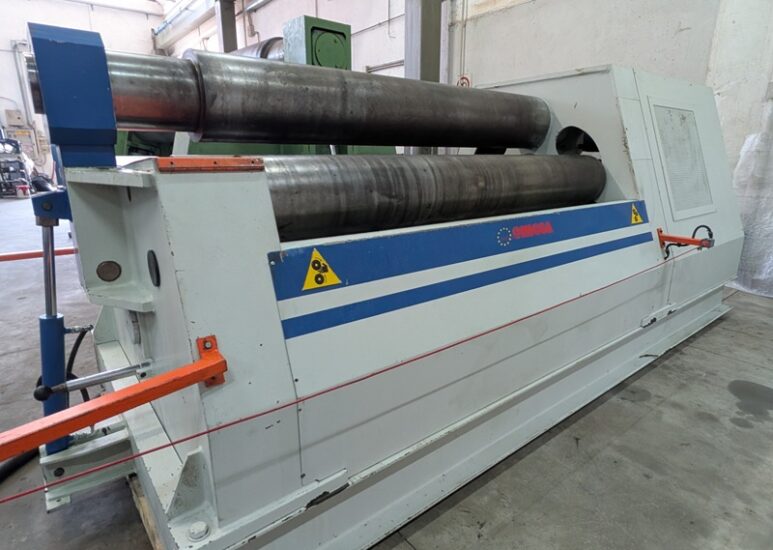

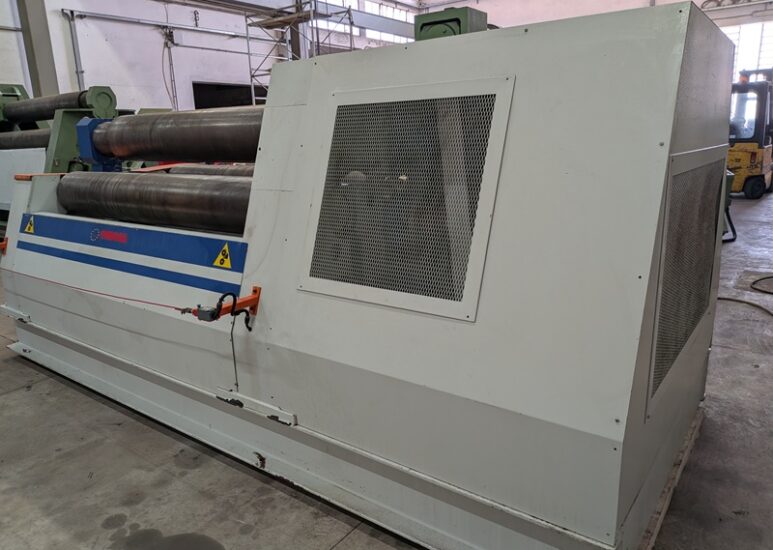

PLATE BENDING MACHINE 4 ROLL HYDRAULIC 2000 X 22 MM

brand OMCCA YEAR 2004  double initial pinch

Plate width 2000 mm

Rolling plate thickness 22 mm

Prebend thickness 16 mm

Minimum bending diameter ID 400 mm

Rolls dimensions:

Useful length 2050 mm

central rolls upper/lower D 320 mm

side rolls left/right D 290 mm

Hardened rolls high strength

Driven rollers rotation central upper and lower

Conical bending attachment side rolls tiltable to form cones, contrast pad roller type.

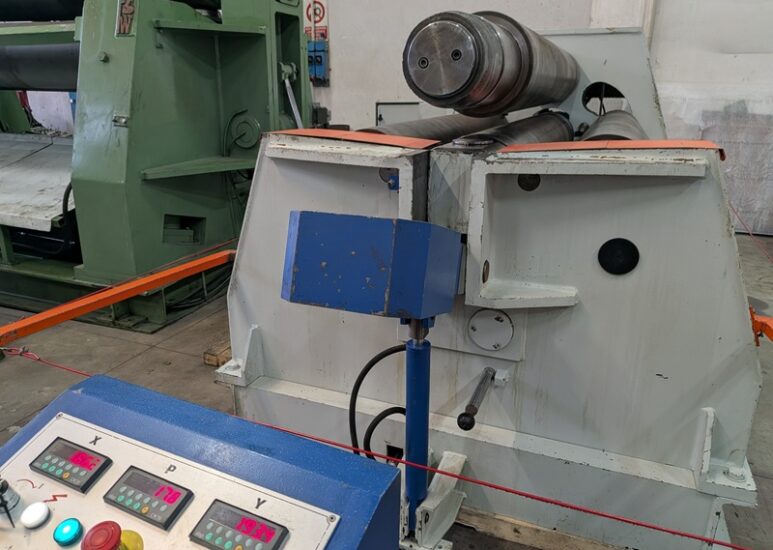

Opening  of top roll  hydraulic drop-end to unload the plate being formed

wide opening plate feed up to 90 mm between the central rollers

Variable speed  working roll bending  rotation automatic slow/fast

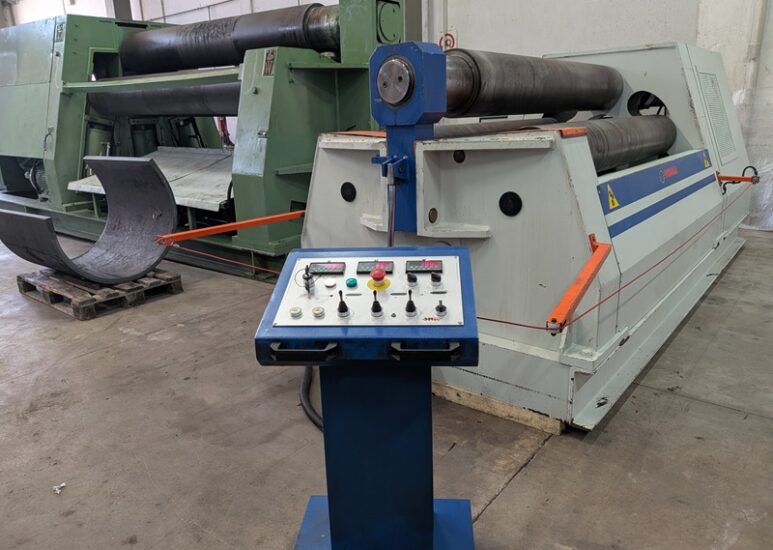

Console electric on wheels with centralized commands  joysticks and digital readout 3  axis

Digital position readouts of the rolls

Power electric 15 Kw  voltage 3-phase 380 /50

Dimension 4400 x2050 x H 1660 mm    – weight 9800kgs
