4roll 2000×8 mm

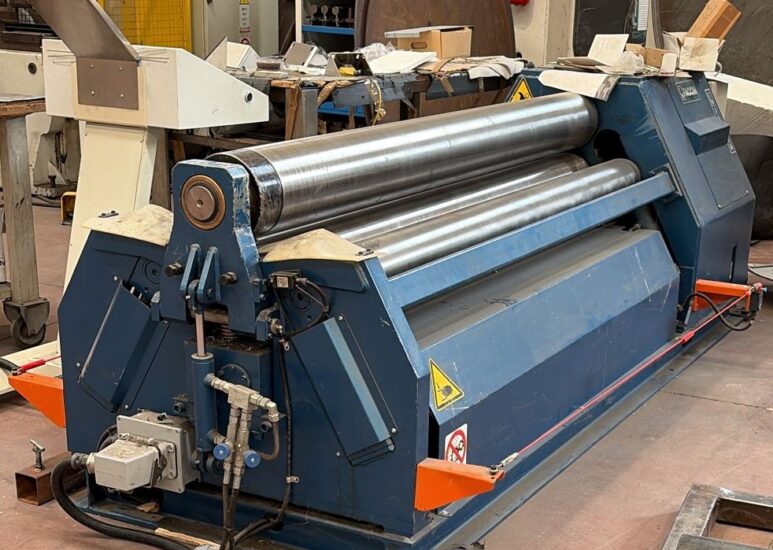

PLATE BENDING MACHINE FACCIN 4ROLL HYDRAULIC 2000 X 8 MM

MODEL 2020B4 year 2020 capacity 2000×8 mm

Plate roll hydraulic linear guideways

Machine in excellent working condition

Bending capacity

Plate width 2000 mm

rolling plate thickness 8 mm

Prebend thickness 6 mm

Rolls dimensions:

Useful length 2050 mm

Upper roll 200 mm

Lower roll 180 mm

Side rolls 160 mm

Electric motor 5,5Kw Vac 400/50

Hardening of the 4 rolls high strength surface

Central rolls driven with hydraulic motors and gear units

Conical bending attachment side rolls tiltable to form cones

Opening front hydraulic drop-end to unload the closed shell.

Variable speed working roll bending rotation hydraulic speed fast/slow.

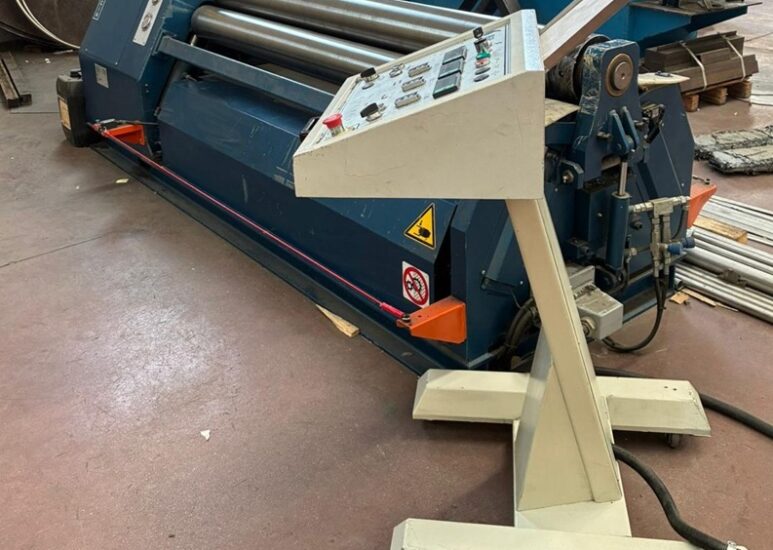

Console electric on wheels with centralized commands joysticks and 3 digital readout.

Digital readouts of the rolls position bending and pre-bending repeatability.

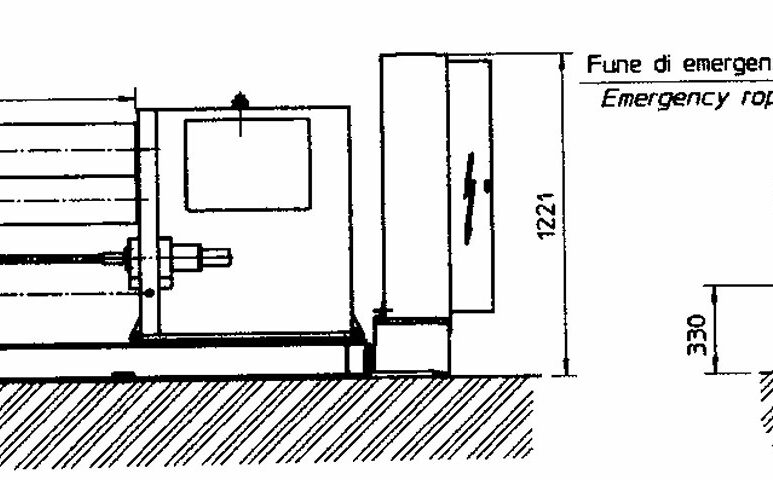

Dimension 3500 x1100 x H 1000 mm – weight 3700kgs
