4roll 2000×6 mm Davi

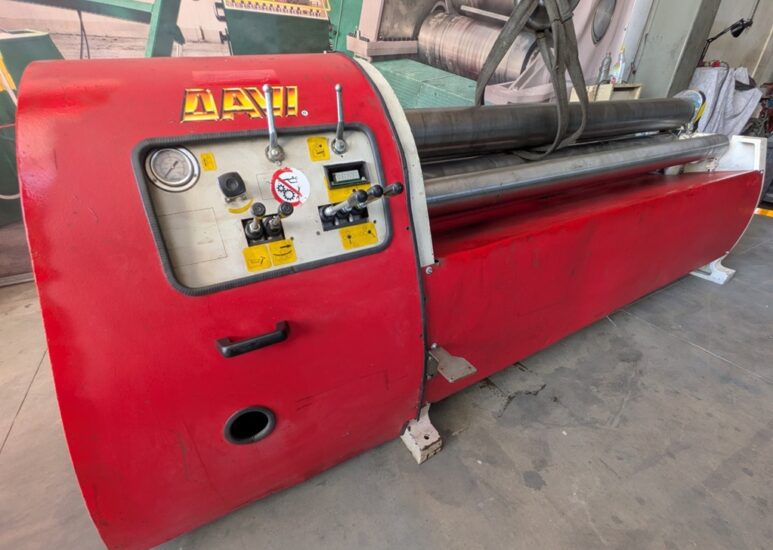

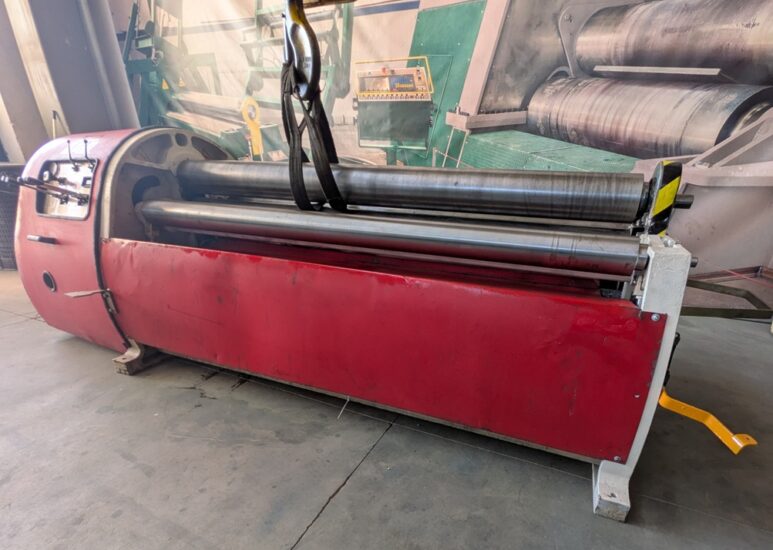

4-roll 2000×6 mm plate bending machine Davi model MAX2017 year 2004

used plate roll in working condition,

Planetary dual pre-pinch

Performance Capacity:

Plate width 2000 mm

plate thickness 6 mm

pre-bend 5 mm

minimum rolling diameter ID 350 mm

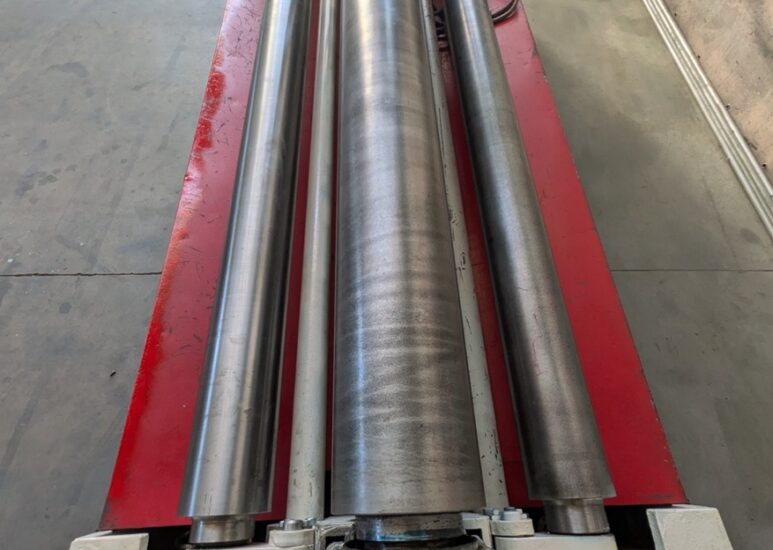

rollers length 2050 mm

Upper roll 165 mm

Pinch roll 155 mm

Side rolls 120 mm

Power electric motor 3 kw on hydraulic unit

Vac 400/50 mm

Installed configuration

Rollers surface hardened high strength

Conical plate rolling, cone bending

Hydraulic commands via leverage distributors

Infinitely variable speed control

Digital position readout

—

Hydraulic driven motorized the central rolls

Pre-pinch pressure adjustable for pre-bend

Drop-end front open to unload closed shells

Re-rolling system for calibration of welded shell

Safety and emergency stop

machine dimension 3400x1150xH 1100 mm -weight 2200kg
