4000X8 MM 3-ROLL
Model Famar CPI4/6 4000X 8/6 MM

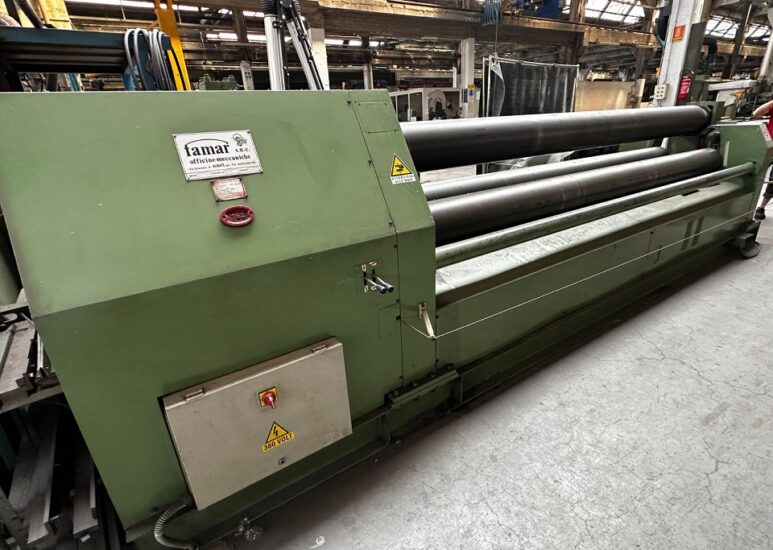

3 roll 4000×8 mm Plate bending machine with pre-pinch
Model Famar CPI4/6
CAPACITY
plate width 4000 mm
plate thickness 8 mm
pre-bending 6 mm
—
Useful rollers width 4050 mm
Top roll d 300 mm
Side rollers D 280 mm

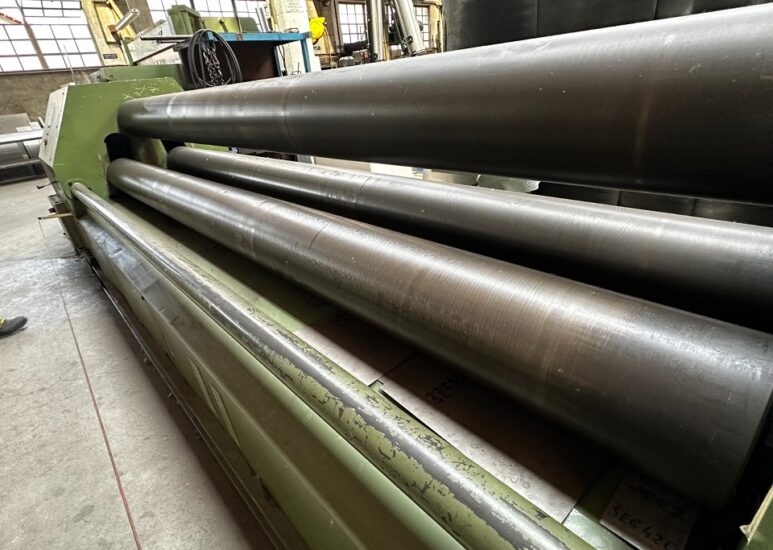

hardened surface of the 3 rolls
position readout of the bending rollers
Opening front hydraulic drop-end to unload the closed shell.

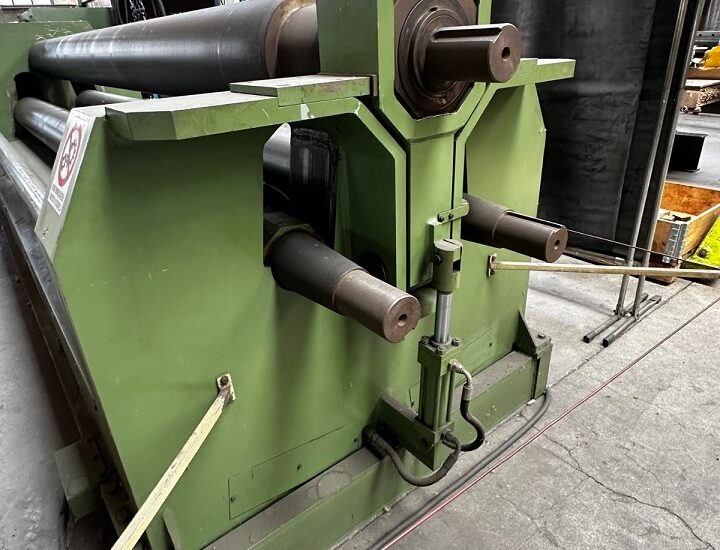

Extended shafts to take installation of add-on rollers for profile bending
Variable speed rolling up to 5 mtr/min
power electric motor 15Hp on hydraulic unit
15Hp-Voltage 380/50
safety installations with emergency stop
dimension 6000×1450 x H 1510
weight 11 Ton
-
3 roll 4000×8 mm Plate bending machine with pre-pinch
- Model Famar CPI4/6
-
CAPACITY
- plate width 4000 mm
- plate thickness 8 mm
- pre-bending 6 mm
- —
- Useful rollers width 4050 mm
-
Top roll d 300 mm
- Side rollers D 280 mm
-
hardened surface of the 3 rolls
- position readout of the bending rollers
- Opening front hydraulic drop-end to unload the closed shell.
-
Extended shafts to take installation of add-on rollers for profile bending
-
Variable speed rolling up to 5 mtr/min
- power electric motor 15Hp on hydraulic unit
- 15Hp-Voltage 380/50
- safety installations with emergency stop
-
dimension 6000×1450 x H 1510
- weight 11 Ton
