4000×6 mm CNC EVO

model capacity 4000×6 mm CNC EVO plate roll

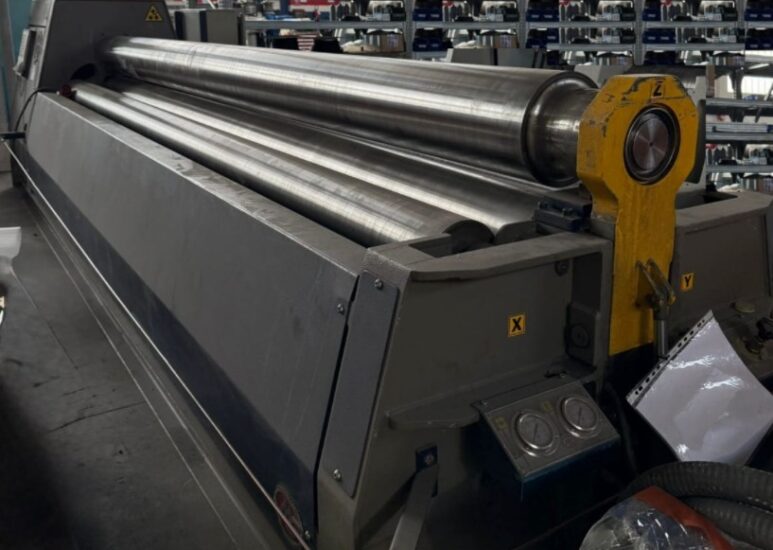

Hydraulic 4 roll plate bending machine used year 2017

plate thickness rolling 6 mm

pre-bend 4 mm

minimum rolling diameter ID 300 mm

plate max width on the rollers 4100 mm

top roll size 250 mm

lower roll 240 mm

side rolls 180 mm

Power on hydraulic unit 5,5 kw Vac 400/50 -480/60

Installed configuration

Hardened rolls high surface strength

Conical plate rolling, cone bending

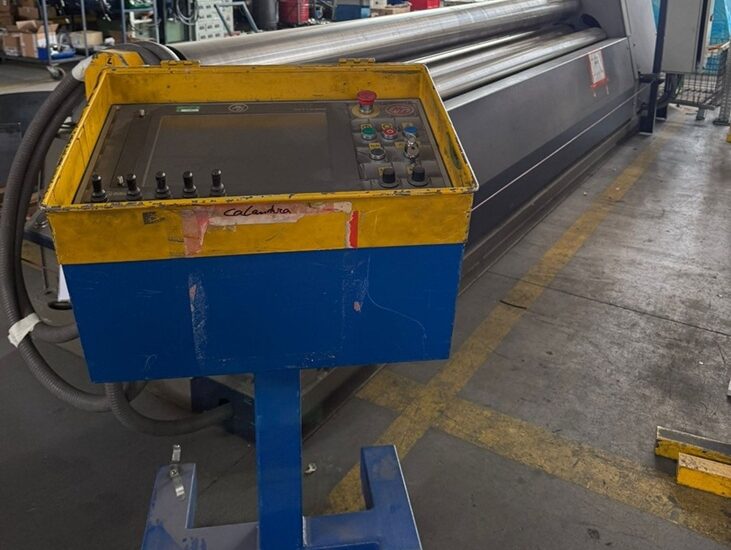

Electric console remoted with CNC EVO 4 axis

Automatic plate roll programmable on drawing import from CAD station

Rolling compensation upon plate different yield strength data input

Hydraulic rotation central rolls driven

Parallelism of the 4 rollers lifetime with torsion bar

Pre-pinch setting upon plate real strength for best pre-bend

Drop-end open front for unloading closed shells

Re-rolling system for welded shells precise calibration.

Safety and emergency stop installed

Manuals and schematics service and instruction books
