3roll 3000x20mm

3-roll hydraulic plate bending machine with pre-pinch  Model MCO3034  Davi   capacity 3000×20 mm

-Plate width 3000 mm   -Capacity plate thickness rolling 20 mm  -Prebend thickness of plate  16 mm

——- TECHNICAL DATA Top roll 340 mm   Surface on the rolls plate width max 3050 mm

MINIMUM ROLLING DIAMETER  ID 430 MM  depending on plate thickness and plate yield strength

CONFIGURATION:

-Rolls hardened  high  strength surface  -Conical plate bending  attachment hydraulic -Digital position readouts

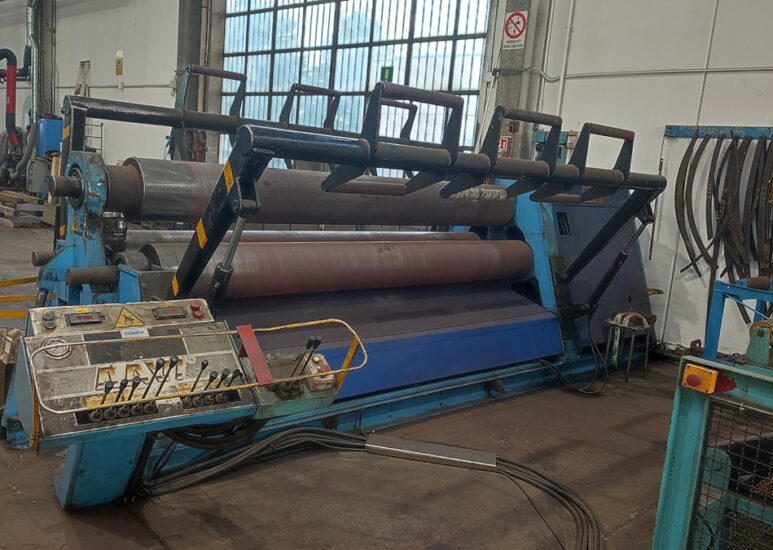

2xplate support left and right side hydraulic  ( see photo ) -3 rolls driven hydraulic powered with individual motor & gear box on each roll.  -Parallelism between top and bottom rollers by torsion bar.  -Rolls  installed on bearings -Overload safety hydraulic  protection of the  rolls  -Synchronized speed hydraulic rotation of the  rolls. -Hydraulic unit self enclosed into the machine. -Speed infinitely variable control with leverage hydraulic distributor -Centralized operator control panel  hinged on the front floating left right -Emergency  shutdown   and safety stop system -Manuals  original

Electric power 15 Hp  Vac 380/50    WEIGHT 9000 KG      DIM 5500X1600XH1500 MM
