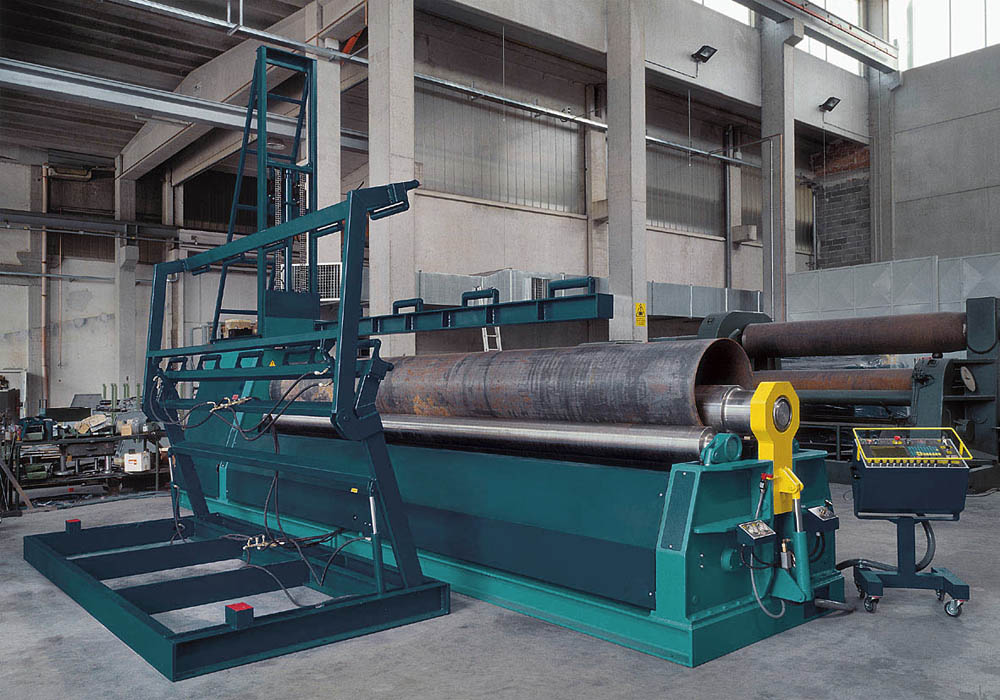

Wide plate tanker - Bending Roll

5000x5 mm 4roll

Tanker 4R6012

4 Roll Dual Initial Pinch / Wide plate tanker

special execution for large plate sheets up to 8 mtrs width, typical for the construction of large vessels on tankers with thin plates stainless, aluminum, alloy steel. 4 roll planetary with dual prepinch assisted with top support to keep from collapsing the formed shell with thin sheets thickness not self supporting. Deflection compensation of the rolls under load adjustable upon the different plate thickness. Re-rolling equipment is on board the machine for the calibration of the welded shell.

4 Roll Dual Initial Pinch
plate roll latest technology, customizable configuration upon the different requirement of production: -Variable Geometry -Planetary Driven -Linear Guideways -Combination Pinch Pyramid -Double initial pre pinch
