4ROLL 2000X10 MM CNC

DAVI 4 ROLL 2000X10 MM MODEL MCB2020 _CNC GENIUS

-YEAR 2004 MACHINE USED IN REGULAR WORKING CONDITION

Capacity:

-Width of plate: 2000 mm

-plate rolling thickness 10 mm

-plate pre-bending thickness 8 mm

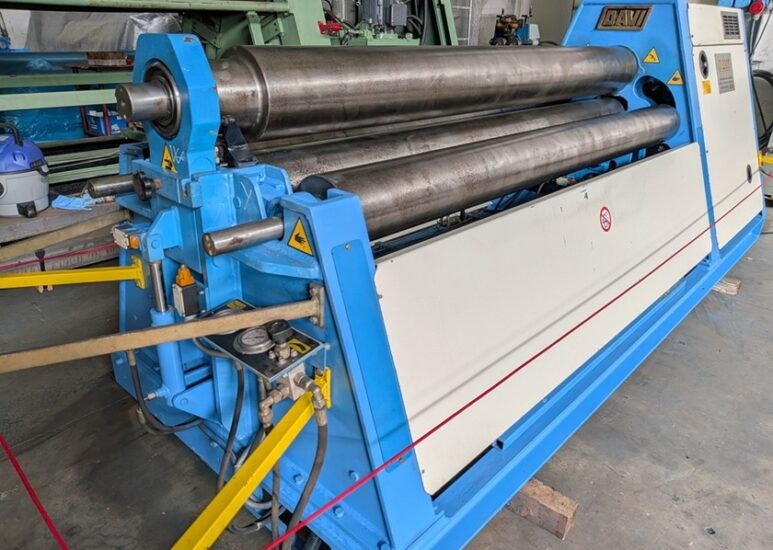

Rollers surface length 2050 mm

upper roll 200 mm

pinch roll 180 mm

side rolls 150 mm

Configuration installed:

Surface hardening of the four rolls

Conical bending hydraulic attachment – hardened pad.

Central rollers powered driven rotation with gear unit & hydraulic motor individual

Calibration system for re-rolling of welded shells rounding.

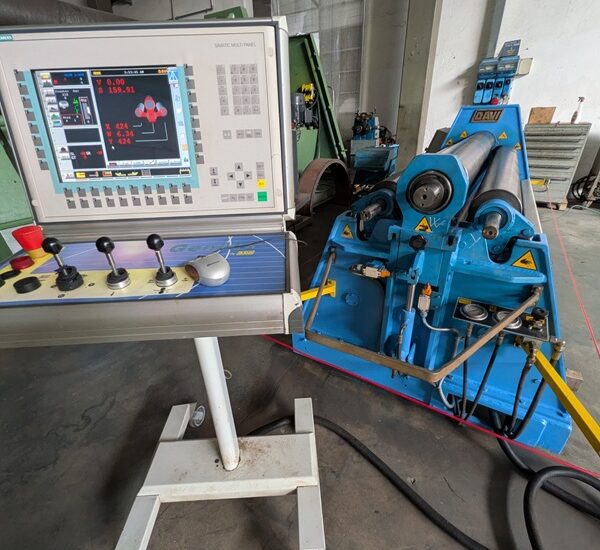

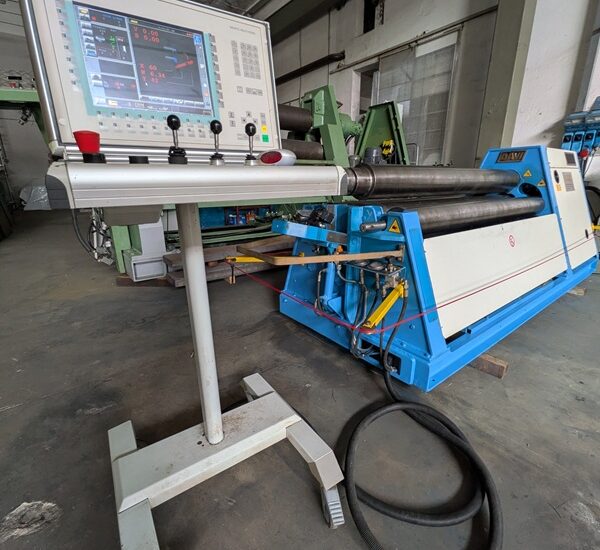

Console electric centralized commands joysticks with screen readout CNC DAVI GENIUS

Opening front side hydraulic drop-end to unload closed shells.

Variable speed or rolling

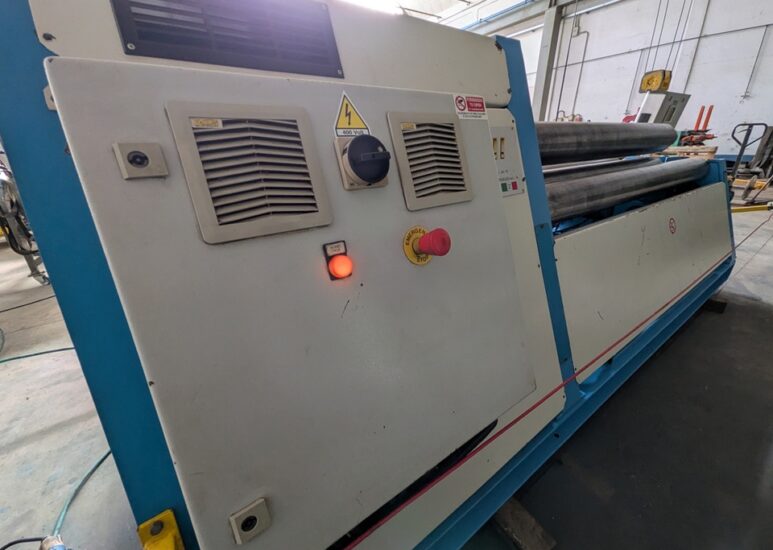

Safety installation with emergency stop.

CNC controller Davi Genius , programmable for automatic plate roll.

digital readout of the 4 roller on screen.

Dimension 3700×1050 x H 1450 mm – weight 4 ton

Voltage 380 / 415/440/480 Vac – Hz 50 / 60

User manual, service manual, cnc manual, with the machine
